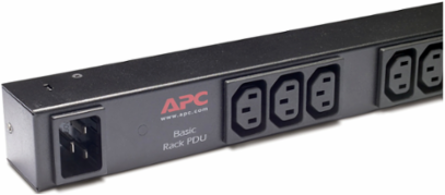

APC AP9572 Rack PDU Zero U 16A 208/230V (15) C13 Energy Efficient, Vertical Mounting, 4.41 lb
- MPN: AP9572
- UPC: 731304226369
- PPN: APC-AP9572
CAD
$529.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 15 IEC 60320 C13 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
Features
- Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
- Features 15 C13 outlets for comprehensive power distribution
- Vertical mounting to save valuable rack space
- Supports up to 16A, 208 and 230V power distribution
- Includes toolless mounting kit for quick setup
Documentation & Downloads
Specifications
Additional
| Voltage | 200 V, 208 V, 230 V |
|---|---|
| Load Capacity | 3680 VA |
| Height | 24.41 in (62 cm) |
| Depth | 1.73 in (4.4 cm) |
| Cord Length | 8.2 ft (2.5 m) |
| Mounting Type | Side, Vertical |
| Outlet Quantity | 15 |
| Product Certifications | UL Listed, cUL Listed, CE, VDE, Queensland Australia |
| Compliance | RoHS, EU RoHS Directive, Lead Free, Reach SVHC Free |
| Storage Temperature Range | -13 to 149 F (-25 to 65 C) |
| Storage Humidity Range | 5 to 95 % |
| Storage Altitude | 0 to 50000 ft (0 to 15240 m) |
| Amperage | 16A |
|---|---|
| Input Frequency | 50/60 Hz |
| Width | 1.73 in (4.4 cm) |
| Weight | 4.41 lb (2 kg) |
| Input Connection Type | IEC 60320 C20 |
| Rack Units | 0U |
| Outlet Type | IEC 60320 C13 |
| Standard | UL 60950 |
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
| Operating Humidity Range | 5 to 95 % |
| Operating Altitude | 0 to 10000 ft |
| Color | Black |
