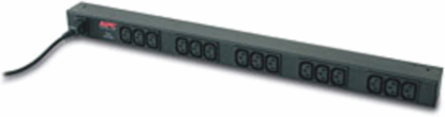

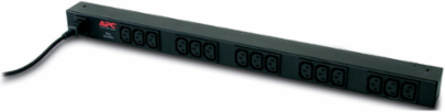

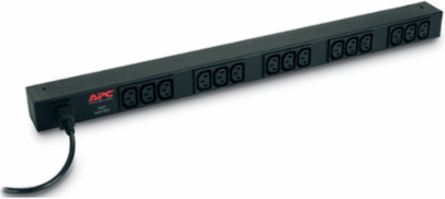

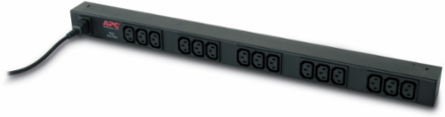

APC AP9568 Rack PDU Zero U, 10A, 230V, 4.41 lb, Vertical Mounting, (15) C13 Outlets
APC AP9568 Rack PDU Zero U, 10A, 230V, 4.41 lb, Vertical Mounting, (15) C13 Outlets
- MPN: AP9568
- UPC: 731304207054
- PPN: APC-AP9568
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$426.87/ EA
Description
Rack PDU Zero U, 10A, 230V, 4.41 lb, Vertical Mounting, (15) C13 Outlets
Features
- Toolless Rack Mounting Capabilities — Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures. — Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Specifications
- Input Voltage
- 120 V, 200 V, 208 V, 230 V, 240 V
- Amperage
- 10 A
- Input Frequency
- 50/60 Hz
- Storage Temperature Range
- -13–149 °F (-25–65 °C)
- Width
- 1.73 in (4.4 cm)
- Weight
- 4.41 lb (2 kg)
- Mounting Position
- side, vertical
- Input Plug Type
- IEC 60320 C14
- Approvals
- UL Listed, cUL Listed, CE, GOST, VDE, Queensland Australia
- REACH Compliance
- Free of SVHC above threshold
- WEEE Compliance
- EU compliant disposal required
Nominal Output Voltage208 V, 230 V
Load Capacity2300 VA
Operating Temperature Range32–113 °F (0–45 °C)
Height24.02 in (61 cm)
Depth1.73 in (4.4 cm)
Cable Length6.5 ft (1.98 m)
Rack Units0U
Outlet Type and Quantity15 IEC 60320 C13
RoHS ComplianceCompliant
Lead FreeYes
California Proposition 65Prop 65 Warning for DINP
Downloads
