APC AP7530 Rack PDU Zero U 20A 120V NEMA L5-20P, 10 ft Cord, 63.74 Inch Height
- MPN: AP7530
- UPC: 731304207962
- PPN: APC-AP7530
CAD
$644.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 24 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes cord retention brackets, an installation guide, rack mounting brackets, and a toolless mounting kit.
Features

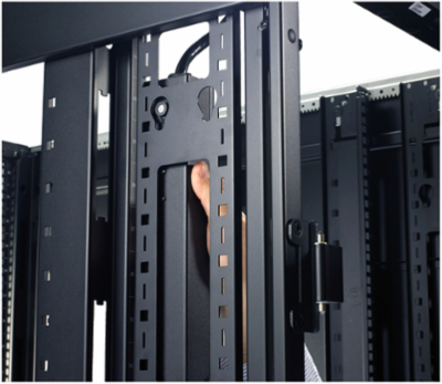

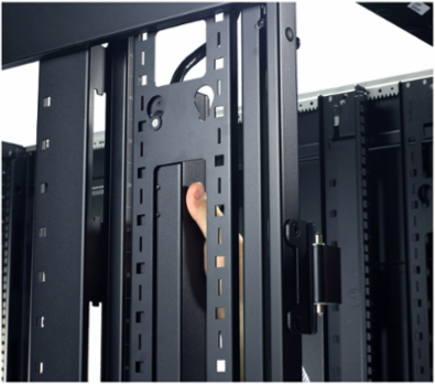

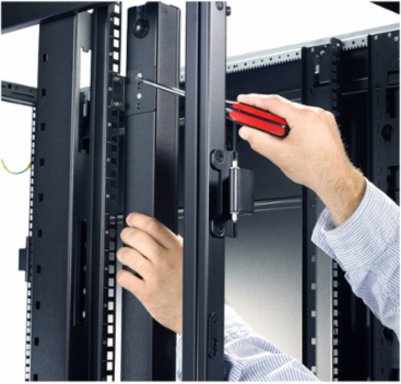

- Toolless Rack Mounting Capabilities — Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

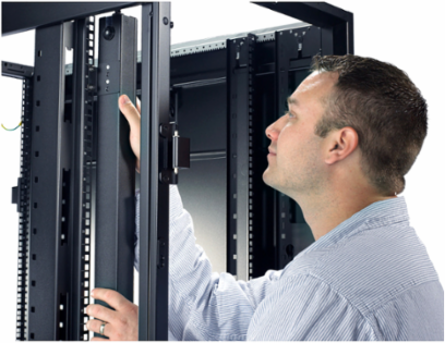

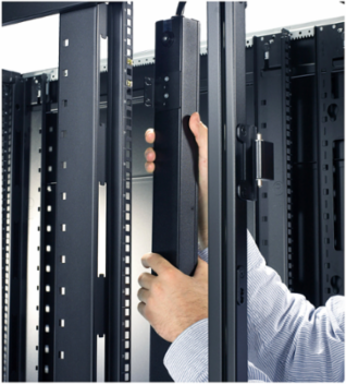

- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
- Supports up to 24 outlets, allowing for efficient power distribution in high-density environments
- Mounts vertically in the rack, saving valuable rack space for other equipment
- Easy installation with toolless mounting capabilities
- Compatible with a variety of rack enclosures and power configurations
Documentation & Downloads
Specifications
Additional
| Voltage | 100 V, 120 V |
|---|---|
| Load Capacity | 1920 VA |
| Height | 63.74 in (161.9 cm) |
| Depth | 1.73 in (4.4 cm) |
| Cord Length | 10 ft (3.05 m) |
| Mounting Position | side, vertical |
| Rack Units | 0U |
| Outlet Type and Quantity | 24 NEMA 5-20R |
| Approvals | cUL Listed, UL Listed, CSA C22.2 No. 60950-1-03, UL 60950-1 |
| RoHS | Compliant |
| Amperage | 20A |
|---|---|
| Input Frequency | 50/60 Hz |
| Width | 2.20 in (5.6 cm) |
| Weight | 10.71 lb (4.86 kg) |
| Mounting Location | side |
| Mounting Mode | Rack-mounted |
| Input Connection Type | NEMA L5-20P |
| Lead Free | Yes |
| REACH | Free of SVHC above threshold |
| Country of Origin | India |
