APC AP9551 Rack PDU Zero U, 20A, 120V, 12 ft Cord, Lightweight 4.85 lb
- MPN: AP9551
- UPC: 731304021247
- PPN: APC-AP9551
CAD
$423.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

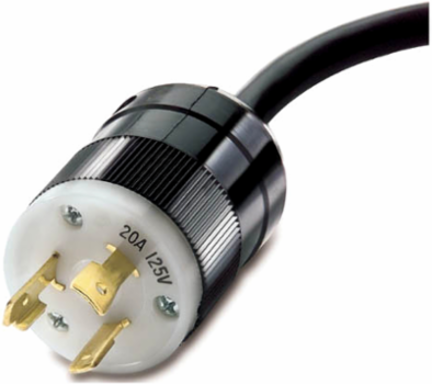

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 14 NEMA 5-15R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a toolless mounting kit.
Features
- Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
- Features 14 NEMA 5-15R outlets for extensive power distribution
- Vertical mounting to save rack space
- Supports up to 20A, 120V power distribution
- Includes toolless mounting kit for quick setup
Documentation & Downloads
Specifications
Additional
| Amperage | 20A |
|---|---|
| Load Capacity | 1920 VA |
| Output Voltage | 120 V |
| Width | 1.65 in (4.2 cm) |
| Cord Length | 12 ft (3.66 m) |
| Mounting Mode | Rack-mounted |
| Weight | 4.85 lb (2.2 kg) |
| Approvals | cUL Listed, CSA, UL Listed |
| WEEE | EU Waste Compliant |
| Lead Free | Yes |
| Voltage | 100-120 V |
|---|---|
| Input Frequency | 50/60 Hz |
| Height | 24.02 in (61 cm) |
| Depth | 1.73 in (4.4 cm) |
| Mounting Location | side, vertical |
| Rack Units | 0U |
| Input Connection Type | NEMA L5-20P |
| RoHS | Compliant |
| Reach Free Of SVHC | Yes |
| Product Orientation | no preference |
