Klein Tools 3007CR Ratcheting Heat Shrink Terminal Crimper, 10 to 22 AWG Wire
- MPN: 3007CR
- UPC: 092644340581
- PPN: KLT-3007CR
- UNSPSC: 27111518
CAD
$48.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The full-cycle Ratcheting Crimper crimps 10-22 AWG heat shrink wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of heat shrink terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time.
Features
- Crimping tool crimps heat shrink terminals onto 10-22 AWG stranded copper wire
- Adjustable compound action design puts more crimping power into each squeeze

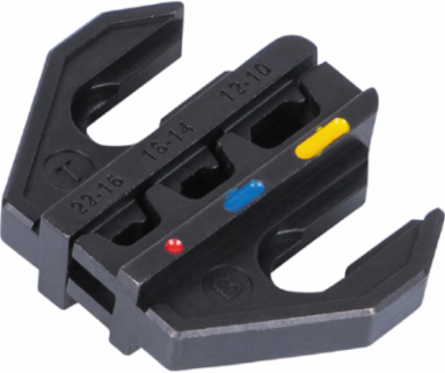

- Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
- 3 Crimping Cavities
Documentation & Downloads
Specifications
Key Specifications
| Application | Heat-Shrink Terminal Crimping on Stranded Wire |
|---|---|
| Handle Color | Red/Black |
| Material | Steel |
| Handle Finish | Dual-Material |
| Overall Height (Inch) | 0.09 |
| Overall Length (Inch) | 9 |
| Overall Width (cm) | 7.6 |
| Overall Width (Inch) | 3 |
| Width | 3.0400 in |
| Weight | 1.1900 lbs |
| Type | Ratcheting Crimper |
|---|---|
| Connector Type | Heat Shrink |
| Cable Size | 10-22 AWG |
| Weight (lb) | 1.3 |
| Overall Length (cm) | 22.9 |
| Overall Height (cm) | 0.2 |
| Weight (kg) | 0.6 |
| Height | 7.0500 in |
| Depth | 8.9300 in |
