Weidmuller 2593350000 RCMA-B22-D125-4.5

Name: Weidmuller 2593350000 RCMA-B22-D125-4.5
Brand: Weidmuller
SKU: WDM-2593350000
Price: 345.07 CAD
Availability: BackOrder

CAD

$345.07

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

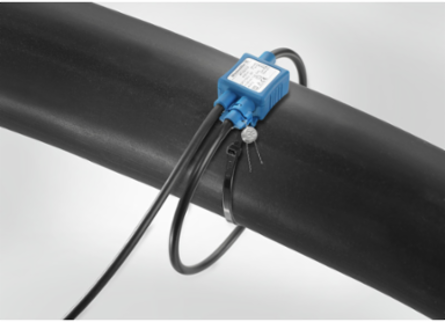

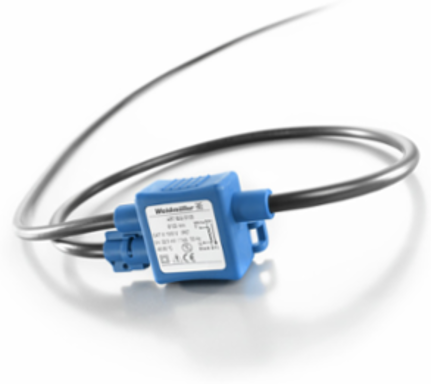

Rogowski coil, Diameter: 125 mm, Cable length: 4.5 m

Linearity	no linearity error

Standard	IEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1

Primary current	5,000 A

Tolerance class	0,5

Approvals	UL
UL File Number Search	E469563

ROHS	Conform

Net weight	130 g

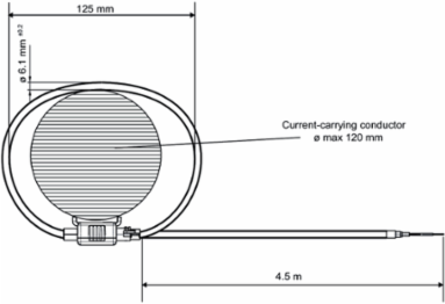

Diameter	125 mm

Cable diameter	6.1 mm
Coil resistance	81 Ω

Cable length	4.5 m

Certificate No. (UL)	E469563

ETIM 7.0	EC002475
eClass 9.1	27-21-01-23

Clearance & creepage distances	>16 mm
Insulation voltage	7.4 kVRMS(50 Hz, 1 min)

Impulse withstand voltage	12.8 kV (1.2/50 ms)
Standard	IEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1

Humidity at operating temperature	5 - 90 %, no condensation
Operating temperature, min.	-40 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...80 °C
