Weidmuller 2593370000 RCMA-B22-D70-1.5
- MPN: 2593370000
- PPN: WDM-2593370000
CAD
$285.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

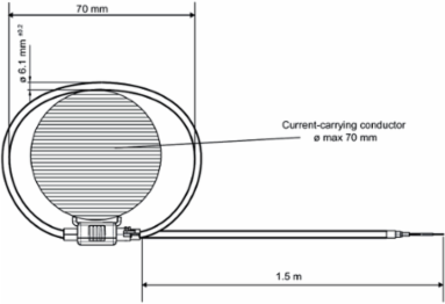

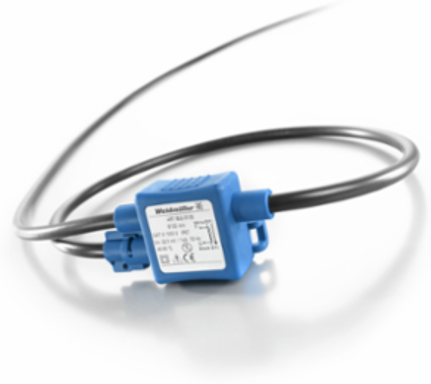

Rogowski coil, Diameter: 70 mm, Cable length: 1.5 m
Documentation & Downloads
Specifications
General Data
| Linearity | no linearity error |
|---|
| Standard | IEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1 |
|---|
Electrical Attributes
| Primary current | 5,000 A |
|---|
| Tolerance class | 0,5 |
|---|
Approvals
| Approvals | UL |
|---|---|
| UL File Number Search | E469563 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 120 g |
|---|
| Diameter | 70 mm |
|---|
Technical Properties
| Cable diameter | 6.1 mm |
|---|---|
| Coil resistance | 56 Ω |
| Cable length | 1.5 m |
|---|
Rated Data Ul
| Certificate No. (UL) | E469563 |
|---|
Classifications
| ETIM 6.0 | EC002475 |
|---|---|
| eClass 9.0 | 27-21-01-23 |
| eClass 10.0 | 27-21-01-23 |
| ETIM 7.0 | EC002475 |
|---|---|
| eClass 9.1 | 27-21-01-23 |
Insulation Coordination
| Clearance & creepage distances | >16 mm |
|---|---|
| Insulation voltage | 7.4 kVRMS(50 Hz, 1 min) |
| Impulse withstand voltage | 12.8 kV (1.2/50 ms) |
|---|---|
| Standard | IEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1 |
Temperatures
| Humidity at operating temperature | 5 - 90 %, no condensation |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
