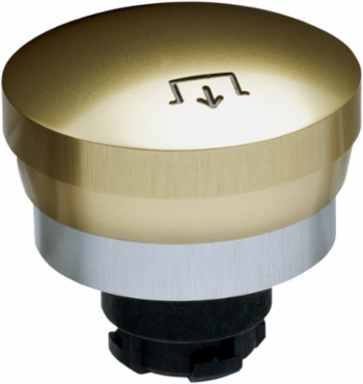

Schmersal 101195098 Emergency Stop Latching Pushbutton, 45 mm Diameter, IP65, Aluminium
- MPN: 101195098
- PPN: SCM-101195098
CAD
$147.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Emergency Stop Latching Pushbutton, 45 mm Diameter, IP65, Aluminium
Features
- with latching
Documentation & Downloads
Specifications
Key Specifications
- Height
- 27.5 mm

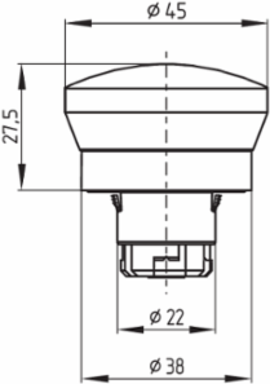

Mechanical data - Dimensions
- Height
- 27.5 mm
- diameters for the actuating heads
- 45 mm
- Thickness, of the front panel, minimum
- 1 mm
- Spacing
- 50 x 60 mm
Diameter total45 mm
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm
General data - Features
- Mounting flange
- Yes
- Latching
- Yes
Snap-action mechanism integratedYes
Fully insulatedYes
General data
- Standards
- EN ISO 13850
- Design
- Round
- Sealing type
- Membrane | Lip gaskets | Form seals
- Material of the front ring
- Aluminium
- Colour of the front ring
- Silver
VersionsLatched pushbutton - Front plate mounting
Installation conditions (mechanical)arbitrarily
Material of the operatorsAluminium powder-coated
Colour of the operating elementYellow
Gross weight70 g
Ambient conditions
- Degree of protection
- IP65
- Restistance to shock
- 50 g
Ambient temperature-25 ... +75 °C
Mechanical data
- Unlocking
- Draw unlocking
- Actuating stroke
- 4 mm
- Tightening torque of the screw
- 0.6 Nm
Mechanical life, minimum100,000 Operations
MountingMounting flange EFM
