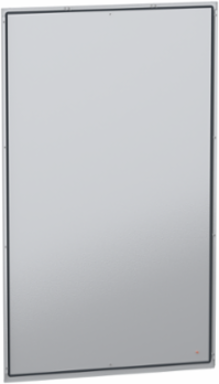

Schneider Electric NSYBPN2012 Rear Panel for PanelSeT SFN, 2000mm x 1200mm, Steel, 101.5 kg

MPN: NSYBPN2012
PPN: SCH-NSYBPN2012

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$425.42/ EA

Qty:

Loading add to cart quantity...

Description

The rear panel for the PanelSeT SFN by Schneider Electric is crafted from robust steel, providing exceptional durability and support for your electrical installations. Measuring 2000mm by 1200mm, it offers ample coverage and is designed to fit seamlessly with the PanelSeT SFN system. Weighing 101.5 kg, this sturdy component ensures a reliable foundation for electrical components, making it an essential part of any efficient panel setup. With its strong construction, this rear panel effectively protects and enhances the functionality of your electrical panel, ensuring that your operations run smoothly.

Specifications

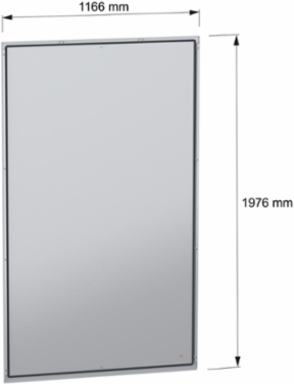

Height: 2000 mm (78.74 in)

Net Weight: 101.5 kg (223.77 lb)

Fixing Mode: by screws captive - from the outside of enclosure

Surface Finish: epoxy-polyester powder

Device Application: multi-purpose

Range Compatibility: PanelSeT, PanelSeT SFN

Device Composition: fixing elements, 1 rear panel

Reach Regulation: Free of Substances of Very High Concern above the threshold

Eu Rohs Directive: Product out of EU RoHS legal scope

Rohs Exemption Information: Yes

Warranty: 18 months

Sustainable Offer Status: Green Premium product

Width1200 mm (47.24 in) nominal

MaterialSteel

Mounting Locationrear of enclosure

Colorgray RAL 7035

RangePanelSeT

Product Or Component Typerear panel

Reach Free Of SvhcYes

Mercury FreeYes

China Rohs RegulationOut of China RoHS legal scope

Environmental DisclosureENVPEP2301018_V1

Accessory / Separate Part Categoryenclosure accessory
