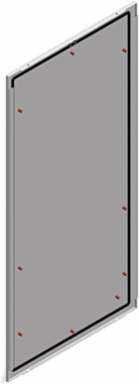

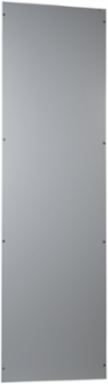

Schneider Electric NSYBP128 Spacial SF Rear Panel 1200x800 mm Steel Epoxy-Polyester Finish
Schneider Electric NSYBP128 Spacial SF Rear Panel 1200x800 mm Steel Epoxy-Polyester Finish
- MPN: NSYBP128
- PPN: SCH-NSYBP128
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$358.17/ EA
Description
Spacial SF rear panel external fixing. 1199 x 800 mm. Multi-purpose application. Mounting on rear of enclosure. Fixing by screws type captive from the outside. Steel made, epoxy-polyester powder surface. Grey RAL 7035. Set of 1, fixing elements included.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rear panel
- Carbon Footprint Of The Distribution Phase A4
- 2.502477707, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 2.882541911, 3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 92 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional Unit Unit
- unit
- Reference Lifetime In Y2
- 20
- Recyclability Potential In 2
- 98
- Height Nominal
- nominal: 1200 mm
- Width Nominal
- nominal: 800 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C431 kg CO2 eq., 30.56101885
Carbon Footprint Of The Manufacturing Phase A1 To A356 kg CO2 eq., 56.48654005
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby screws captive - from the outside of enclosure
Mounting Locationrear of enclosure
Product Or Component Typerear panel
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Accessory Separate Part Categoryenclosure accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G213000
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Height Usefulnominal: 1200 mm
Width Realnominal: 800 mm
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 92.43257852
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- rear panel
ETIM
- ETIM 8
- EC002524
ETIM 9EC002524
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 47.24 in
Width31.5 in
