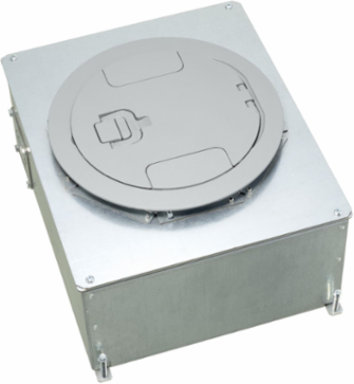

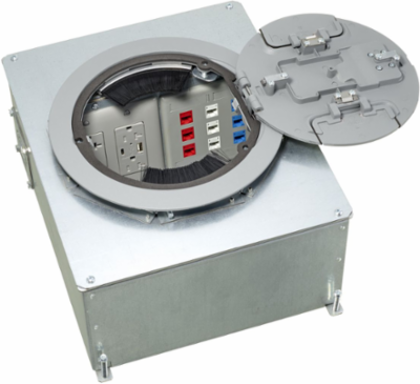

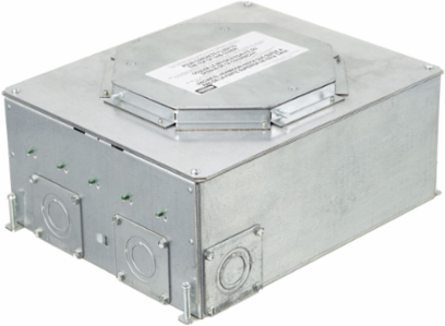

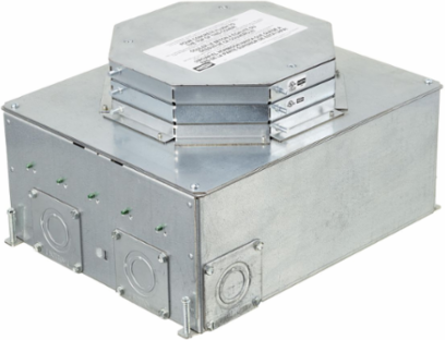

Hubbell Premise Wiring CFB45G55RE Recessed 4/5-Gang Floor Box, 14.14 Inch x 11.09 Inch x 6.31 Inch Depth

MPN: CFB45G55RE
UPC: 783585695419
PPN: HBL-CFB45G55RE
UNSPSC: 39121307

$803.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 4/5-Gang CFB E-Series Box for Round Covers, 6.31" Minimum Depth of Pour

Features

Recessed 4/5-Gang Round Cover Floorbox
For Use In Concrete Floors
3.75" Deep Wiring Chambers
External High Capacity Feed-Thru Hubs Sold Separately
6.31" Minimum Depth of Pour
Box Includes Installation Cover
Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
(1) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
Pregalvanzied Stamped Steel Box; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)

Documentation & Downloads

Specifications

Additional

Height	6.31 in
Width	11.09 in
Size	14.14 in x 11.09 in x 6.31 in
Mounting Type	Field Installed
Color	Metallic, Natural
Wiring Chamber Depth	3.75 in
Device Chamber Grounding	6 in Long #12 AWG Solid Copper Wire
Application	For Use in Concrete Floors

Length	14.14 in
Type	Recessed
Material	Galvanized Stamped Steel, 16 gauge galvanized steel
Mounting Method	Screw Mount Device Mounting Plates
Trade Size Knock-Outs	(2) 3/4", 1", 1 1/4", 2"
Wiring Chamber Volumes	(2) Small 35 in3, (2) Medium 69.5 in3, (2) Large 99 in3
Listings	cULus Listed, UL 514A Listed
