Balluff

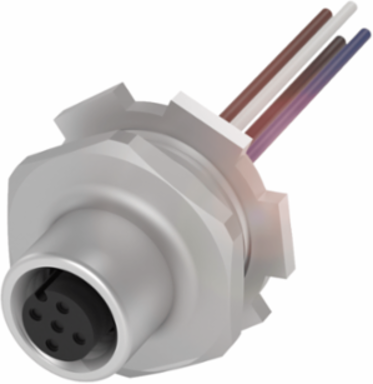

Balluff BCC M454-0000-1A-RN060-020 Receptacle, 2.00 m Lead Length, M12x1-Female, 4-Pin, IP67

  • MPN: BCC M454-0000-1A-RN060-020
  • PPN: BAL-BCC0CZ1

CAD

$82.66

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Designed for robust connectivity in automation and control applications, the BCC M454-0000-1A-RN060-020 receptacles from Balluff offer exceptional performance and reliability. With a generous lead length of 2.00 meters and a 4-pin A-coded M12x1 female connection, these receptacles are built to handle operating voltages of up to 300 VDC or 300 VAC. Their IP67 rating ensures protection against dust and water, making them ideal for demanding environments. Conforming to cULus, EAC, and WEEE standards, this product guarantees quality and safety for your connectivity needs.

Documentation & Downloads

Specifications

Additional

Operating Voltage300 VDC / 300 VAC
Lead Length2.00 m
Conductor Cross-Section22 AWG
IP RatingIP67
Ambient Temperature Range-40 to 105 C
Tightening Torque0.6 Nm
Current Rating4.0 A
ConnectionM12x1-Female, straight, 4-pin, A-coded
Number of Conductors4
MaterialPVC (insulation), Copper alloy (contacts), Aluminum anodized (cover nut)
Mounting1/2" NPT
CompliancecULus, EAC, WEEE
Receptacle, 2.00 m Lead Length, M12x1-Female, 4-Pin, IP67
