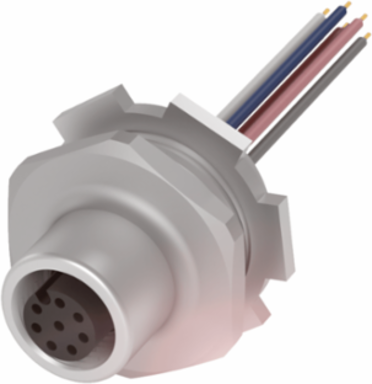

Balluff BCC M458-0000-1A-RN066-020 Receptacle, 8 Conductors, 60 VDC / 60 VAC, IP67, 2.00 m Lead Length
- MPN: BCC M458-0000-1A-RN066-020
- PPN: BAL-BCC0E1L
CAD
$116.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for reliability and performance, the Balluff receptacle is designed to meet the demanding needs of industrial applications. With an 8-pin A-coded connection and a robust IP67 rating, this receptacle ensures optimal protection against dust and water ingress, making it suitable for harsh environments. It operates effectively at voltages of up to 60 VDC and 60 VAC, and features a generous lead length of 2.00 meters with a conductor cross-section of 22 AWG, providing flexibility in installation. Additionally, it holds various approvals including cULus and EAC, ensuring compliance with international standards for safety and reliability.
Documentation & Downloads
Specifications
Additional
- Number of Conductors
- 8
- IP Rating
- IP67
- Operating Temperature Range
- -40 to 105 C
- Conductor Cross-Section
- 22 AWG
- Mounting
- 1/2 in NPT
- Material - Conductor Insulation
- PVC
- Material - Cover Nut
- Aluminum, Anodized
Operating Voltage60 VDC / 60 VAC
Rated Current2.0 A
Lead Length2.00 m
ConnectionM12x1-Female, straight, 8-pin, A-coded
Tightening Torque0.6 Nm
Material - ContactsCopper alloy
CompliancecULus, EAC, WEEE
