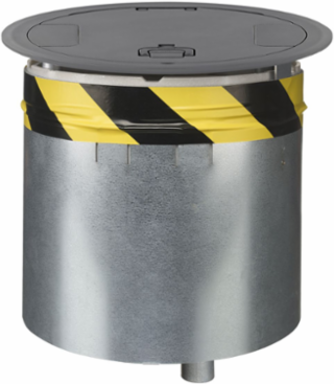

Hubbell Premise Wiring S1R10PTGRY 10 Inch Recessed Fire-Rated Poke-Through Kit, Gray Powder Coat Finish
- MPN: S1R10PTGRY
- UPC: 783585548258
- PPN: HBL-S1R10PTGRY
- UNSPSC: 39121328
CAD
$3512.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 10" Series, Kit, Includes (1) S1R10PTFIT,(1) S1R10CVRGRY, (2) S1R10PSPREPBRKT, (4) S1R10CBFPT, (3) S1R10PBFBLANK, (1) S1R10PBF075, (1) S1R10CENTERDIV, (1) S1R10PERIMDIV
Features
- For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- Standard Product
Documentation & Downloads
Specifications
Additional
- Size
- 10 in.
- Cover Load Rating
- 1000 lbs Static Load Through 3 in. Diameter Mandrel
- Minimum Concrete Floor Thickness
- 2.25 in.
- Maximum Copper Cross Section - Perimeter Chamber
- 0.0408 sq. in.
- Material
- Fabricated
- Fitting Material
- Pre-Galvanized Steel & Intumescent
- Finish
- Gray Powder Coat
- Plate Style
- Accepts S1R10xx Series
- Type
- 10 in. Recessed Rated Poke Through Kit
- Country of Origin
- US
- EU RoHS Indicator
- Contact Manufacturer
- Style
- FRPT Kits
Core Hole10 in.
Mounting Type10 in. Core Hole
Maximum Copper Cross Section - Center Chamber0.0978 sq. in.
Width14.3 in.
Cover MaterialCast Aluminum
Bottom Feed Plates MaterialPre-Galvanized Steel
Application10 in. Fire-Rated Poke-Through Series
Cable EntryThrough Cover
Cover Connection TypeRecessed
Industry Standard(s)cULus Listed; Meets ADA Standards; UL 514A Listed
Sub BrandSystemOne Recessed
