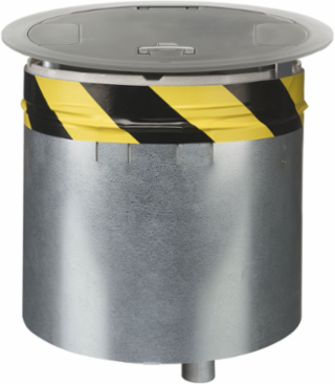

10 Inch Recessed Fire-Rated Poke-Through Kit, Up to 2 Hour Rating
Hubbell Premise Wiring

Hubbell Premise Wiring S1R10PTNKL 10 Inch Recessed Fire-Rated Poke-Through Kit, Up to 2 Hour Rating

  • MPN: S1R10PTNKL
  • UPC: 783585548241
  • PPN: HBL-S1R10PTNKL
  • UNSPSC: 39121328

CAD

$3512.92

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Fire Rated Poke Throughs, Recessed 10" Series, Kit, Includes (1) S1R10PTFIT, (1) S1R10CVRNKL, (2) S1R10PSPREPBRKT, (4) S1R10CBFPT, (3) S1R10PBFBLANK, (1) S1R10PBF075, (1) S1R10CENTERDIV, (1) S1R10PERIMDIV

Features

  • For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
  • Up to 2 Hour Fire Rating
  • Step Down Installation
  • Standard Product

Documentation & Downloads

Specifications

Additional

Size
10 in.
Core Hole
10 in.
Cover Material
Cast Aluminum
Fitting Materials
Pre-Galvanized Steel, Intumescent
Maximum Copper Cross Section - Center Chamber
0.0978 sq. in.
Cover Connection Type
Recessed
Width
14.5 in.
Material
Fabricated
Mounting Type
10 in. Core Hole
Country of Origin
US
Standard
cULus Listed; Meets ADA Standards; UL 514A Listed
Sub Brand
SystemOne Recessed
Type
10 in. Recessed Rated Poke Through Kit
Fire Rating1-2 Hour
Minimum Concrete Floor Thickness2.25 in.
Cover FinishSatin Nickel Plated
Bottom Feed Plates MaterialPre-Galvanized Steel
Maximum Copper Cross Section - Perimeter Chamber0.0408 sq. in.
Cover Load Rating1,000 lbs Static Load Through 3 in.
Plate StyleAccepts S1R10xx Series
Material - Mounting HardwareMounting Hardware Included
Cable EntryThrough Cover
ColorNickel
Industry Standard(s)cULus Listed; Meets ADA Standards; UL 514A Listed
StyleFRPT Kits
