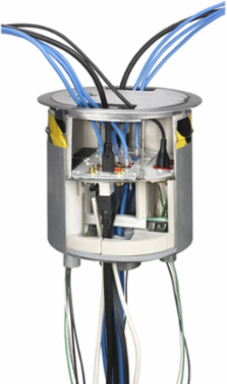

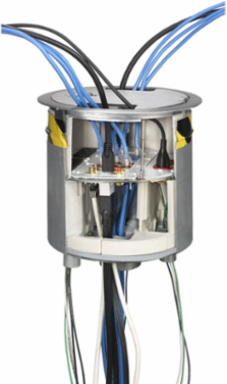

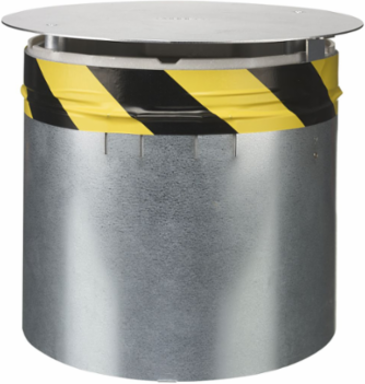

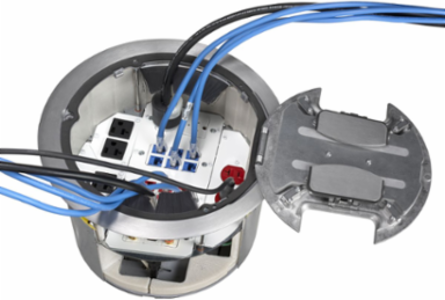

Hubbell Premise Wiring S1R10PTFIT 10 Inch Fire-Rated Recessed Floor Fitting, 17.450 lb, Natural Finish

MPN: S1R10PTFIT
UPC: 783585547596
PPN: HBL-S1R10PTFIT
UNSPSC: 39121328

$2310.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Fire Rated Poke Throughs, Recessed 10" Series, Through Floor Fitting

Features

For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
Up to 2 Hour Fire Rating
Step Down Installation
Sub-plates and Bottom Feed Plates Ordered Separately
Standard Product

Documentation & Downloads

Specifications

Additional

Core Hole	10 in.
Weight	17.450 lb
Minimum Concrete Floor Thickness	2.25 in (57.2 mm)
Mounting Type	10" Core Hole
Material - Mounting Hardware	Mounting Hardware Included
Fitting Material - Non-Metallic	Intumescent
Industry Standard(s)	cULus Listed
Color	Metallic
Style	In Floor Fitting
Application - For Use On	Concrete
Plate Style	Accepts S1R10xx Series
Recessed Covers Maximum Copper Cross Section - Perimeter Chamber	0.0408 sq. in.
Furniture Feed Covers Maximum Copper Cross Section - Each 2" Low Voltage Hub	0.0960 sq. in.

Fire Rating	1-2 Hour
Width	14.700 in
Material	Fabricated
Mounting	10" Core Hole
Fitting Material - Metallic	Pre-Galvanized Steel
Standard	cULus Listed
Cable Entry	Through Cover
Country of Origin	US
Sub Brand	SystemOne Recessed
Application	10" Fire-Rated Poke-Through Series
Recessed Covers Maximum Copper Cross Section - Center Chamber	0.0978 sq. in.
Furniture Feed Covers Maximum Copper Cross Section - Each 1" Power Hub	0.1304 sq. in.
