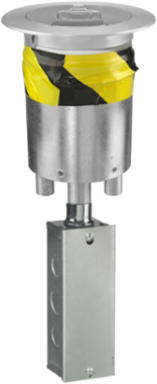

Hubbell Premise Wiring S1R4PTQUADNKL Recessed 4 Inch Quad Fire-Rated Poke-Through Kit with Nickel Cover
- MPN: S1R4PTQUADNKL
- UPC: 783585446189
- PPN: HBL-S1R4PTQUADNKL
- UNSPSC: 39121328
CAD
$1359.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 4" Series, Quad Through Floor Fitting with Satin Nickel Plated Cover
Features
- For use with a 4.00” to 4.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- Two Circuit Quad Receptacle
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Core Hole | 4 Inch |
| Industry Standard(s) | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Application | 4" Fire-Rated Poke-Through Series |
| Color | Nickel |
| Mounting | 4" Core Hole |
| Special Features | Two Circuit Quad Receptacle |
| Sub Brand | SystemOne Recessed |
| General Literature Asset 1 Display Text | Hubbell SystemOne Recessed Fire-Rated Poke-Throughs |
| Finish Type | Satin Nickel Plated Cover |
| Number Of Outlets | (1) Quad 20A 125V Receptacle |
| Description - Invoice | S1R 4, FITTING, QUAD, NICKEL COVER |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Material | Fabricated |
| BOX SIZE | 7.700x13.200x9.200 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585446189 |
| Case Weight | 6.400 lb. |
| Pallet Height | 46.200 in |
| Pallet Weight | 576.000 lb. |
| NAICS Code | 3359326106 |
| Application - For Use On | Concrete |
|---|---|
| Width | 9.200 in |
| Size | Standard Sized Product |
| Cable Entry | Through Cover |
| Finish | Satin Nickel Plated Cover |
| Number of Outlet | (1) Quad 20A 125V Receptacle |
| Standard | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Type | 4" Recessed Rated Poke Through Kits |
| Accessory Type | 4" FRPT Kit |
| Mounting Type | 4" Core Hole |
| Style | FRPT - Complete Kits |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Mounting Hardware Included |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585446188 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
