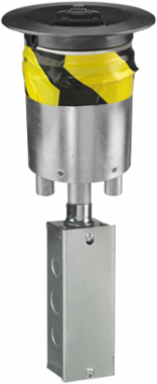

Hubbell Premise Wiring S1R4PTQUADBLK 4 Inch Fire-Rated Recessed Poke-Through Kit with Quad Receptacle
Hubbell Premise Wiring S1R4PTQUADBLK 4 Inch Fire-Rated Recessed Poke-Through Kit with Quad Receptacle
- MPN: S1R4PTQUADBLK
- UPC: 783585446172
- PPN: HBL-S1R4PTQUADBLK
- UNSPSC: 39121328
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1294.43/ EA
Description
Fire Rated Poke Throughs, Recessed 4" Series, Quad Through Floor Fitting with Black Power Paint Cover
Features
- For use with a 4.00” to 4.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- Two Circuit Quad Receptacle
Specifications
Specifications
- Country of Origin
- United States
- Core Hole
- 4 Inch
- Industry Standard(s)
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Application
- 4" Fire-Rated Poke-Through Series
- Color
- Black
- Number of Outlet
- (1) Quad 20A 125V Receptacle
- Standard
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Type
- 4" Recessed Rated Poke Through Kits
- Mounting Type
- 4" Core Hole
- Style
- FRPT - Complete Kits
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Mounting Hardware Included
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet - GTIN - Package
- 70783585446171
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Application - For Use OnConcrete
Width9.200 in
SizeStandard Sized Product
Cable EntryThrough Cover
Mounting4" Core Hole
Special FeaturesTwo Circuit Quad Receptacle
Sub BrandSystemOne Recessed
General Literature Asset 1 Display TextHubbell SystemOne Recessed Fire-Rated Poke-Throughs
Number Of Outlets(1) Quad 20A 125V Receptacle
Description - InvoiceS1R 4, FITTING, QUAD, BLACK COVER
Harmonization Code8536698000
MSDS FlagNo
MaterialFabricated
BOX SIZE7.800x13.300x9.200 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585446172
Case Weight6.300 lb.
Pallet Height46.800 in
Pallet Weight567.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
