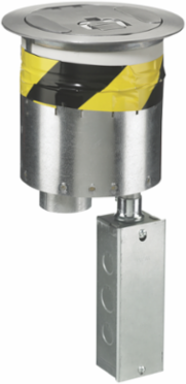

Hubbell Premise Wiring S1R6PTDEHALU Fire-Rated Poke-Through Kit, 6 Inch, Brushed Aluminum Cover, (4) 20A Receptacles
- MPN: S1R6PTDEHALU
- UPC: 783585443225
- PPN: HBL-S1R6PTDEHALU
- UNSPSC: 39121328
CAD
$1683.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 6" Series, Kit, (1) S1R6PTFIT, (1) S1R6SPD, (1) S1R6SPE, (1) S1R6SPH, (1) S1R6CVRALU
Features
- For use with a 6.00” to 6.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- (4) 20A, pre-wired receptacles
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Core Hole | 6 Inch |
| Industry Standard(s) | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Size | Standard Sized Product |
| Cable Entry | Through Cover |
| Finish | Brushed Aluminum Cover |
| Number of Outlet | (2) 50% Left Side Sub Plates- (3) iSTATION Opening, (1) Style Line® Decorator Opening, (2) Hubbell Keystone Openings and (1) 50% Right Side- (4) 20A Pre-Wired Receptacles, 1 or 2 Circuits, 18" Leads |
| Standard | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Type | 6" Recessed Rated Poke Through Kit |
| Accessory Type | 6" FRPT Kit |
| Mounting Type | 6" Core Hole |
| Style | FRPT - Complete Kits |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Mounting Hardware Included |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 10.174 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585443224 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application - For Use On | Concrete |
|---|---|
| Width | 11.300 in |
| Plate Style | Accepts S1R6xx Series |
| Application | 6" Fire-Rated Poke-Through Series |
| Color | Aluminum |
| Mounting | 6" Core Hole |
| Special Features | (4) 20A, pre-wired receptacles |
| Sub Brand | SystemOne Recessed |
| General Literature Asset 1 Display Text | Hubbell SystemOne Recessed Fire-Rated Poke-Throughs |
| Finish Type | Brushed Aluminum Cover |
| Number Of Outlets | (2) 50% Left Side Sub Plates- (3) iSTATION Opening, (1) Style Line® Decorator Opening, (2) Hubbell Keystone Openings and (1) 50% Right Side- (4) 20A Pre-Wired Receptacles, 1 or 2 Circuits, 18" Leads |
| Description - Invoice | S1R FRPT 6, 4X 20A, 4U IS, 1 SL+2 KS ALU |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Material | Fabricated |
| BOX SIZE | 10.600x14.100x11.300 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585443225 |
| Case Weight | 10.174 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 42.400 in |
| Pallet Weight | 506.400 lb. |
| NAICS Code | 3359326106 |
