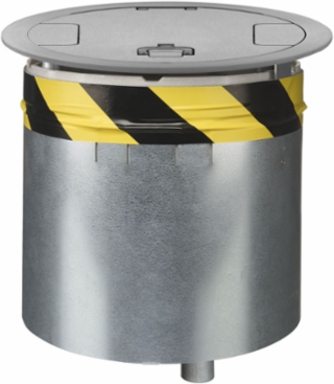

Hubbell Premise Wiring S1R10PTALU 10 Inch Fire-Rated Poke-Through Kit, Brushed Aluminum Cover, 14.600 Inch Width
- MPN: S1R10PTALU
- UPC: 783585548203
- PPN: HBL-S1R10PTALU
- UNSPSC: 39121328
CAD
$3512.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 10" Series, Kit, Includes (1) S1R10PTFIT, (1) S1R10CVRALU, (2) S1R10PSPREPBRKT, (4) S1R10CBFPT, (3) S1R10PBFBLANK, (1) S1R10PBF075, (1) S1R10CENTERDIV, (1) S1R10PERIMDIV
Features
- For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- Standard Product
Documentation & Downloads
Specifications
Additional
- Size
- 10 in.
- Cover Finish
- Brushed
- Material - Bottom Feed Plates and Metallic Dividers
- Pre-Galvanized Steel
- Maximum Copper Cross Section - Perimeter Chamber
- 0.0408 sq. in.
- Cover Load Rating
- 1,000 lbs Static Load Through 3 in. Diameter Mandrel
- Fire Rating
- 1-2 Hour
- Color
- Aluminum
- Material
- Fabricated
- Standards
- cULus Listed; Meets ADA Standards; UL 514A Listed
- Plate Style
- Accepts S1R10xx Series
- Sub Brand
- SystemOne Recessed
Cover MaterialCast Aluminum
Fitting MaterialPre-Galvanized Steel & Intumescent
Maximum Copper Cross Section - Center Chamber0.0978 sq. in.
Cover Connection TypeRecessed
Drilled or Formed Concrete Hole Size10.00 to 10.12 in.
Minimum Concrete Floor Thickness2.25 in.
Mounting Type10 in. Core Hole
Cable EntryThrough Cover
Application10 in. Fire-Rated Poke-Through Series for Concrete
Country of OriginUS
