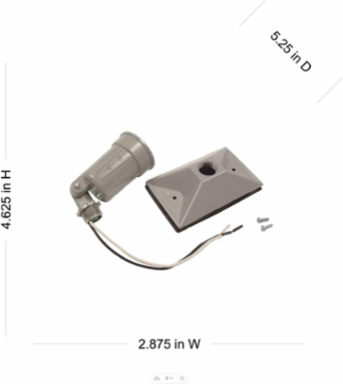

Bell 5620-0 Rectangular Weatherproof Cover for PAR 38 Lamps, Gray, 5 Inch x 2.844 Inch x 4.594 Inch, 0.74 lb.
Bell 5620-0 Rectangular Weatherproof Cover for PAR 38 Lamps, Gray, 5 Inch x 2.844 Inch x 4.594 Inch, 0.74 lb.
- MPN: 5620-0
- UPC: 050169562000
- PPN: HBL-5620-0
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$33.40/ EA
Description

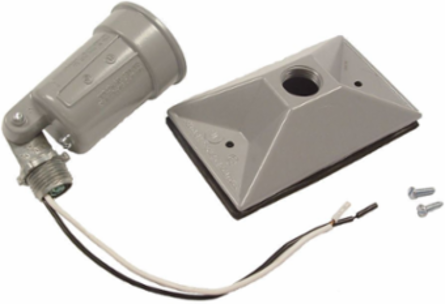

Rectangular Weatherproof Combination Cover for 75-150W Par 38 Lamps, Includes 1 Lampholder, Gasket, and Hardware, Gray
Features
- Rugged die cast constructions
- State-of-the-art powder coat finish provides maximum weatherability and scratch resistance
- Locking swivel knuckle assures positive lamp positioning and provides pin-point directional aiming
- Includes gasket and mounting hardware
- Multi-lingual instructions in each package
- No Need to purchase separate components
- Premium powder coat finish provides maximum weather ability and scratch resistance
- Rugged die cast construction
- Extra long wire leads
- Porcelain sockets
- Locking swivel knuckle
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Depth
- 5.25 in
- Product Type
- Weatherproof Lighting
- Color
- Gray
- Standard
- UL Listed;CSA Certified
- Width
- 2.875 in
- Number Of Outlets
- 1
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- WP LMPHLDR CVR 1G w/(1)LMPHLDR GRY
- Harmonization Code
- 8536610000
- Lead Time
- 7 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Adjustable Detection Sensitivity
- No
- ENERGY STAR Certified
- No
- Weather Resistant
- Yes
- Light Source
- Incandescent;PAR 38
- Proposition 65 Warning Required
- No
- BOX SIZE
- 8x15.5x4 (in)
- Carton - Gross Weight per Pack
- 5.92 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 8 EA
- Item Package Type
- Shrink
- Package Height
- 4.594 in
- Package Weight
- 0.74 lb.
- Pallet - GTIN - Package
- 70050169562009
- Pallet - Pack Description
- Pallet
- Pallet - Total Units
- 1120 EA
- Pallet Length
- 42.000 in
- Pallet Width
- 48.000 in
Country of OriginIN
Each - Width2.844 in
Standard Package8
Height4.625 in
TypeCover;Lighting
Fixture TypeArchitectural;Flood;Swivel
Power TypeHardwired
Class CodeD16
Freight Class Code06202000
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeD170D1720
Dusk to DawnNo
Glass/Lens TypeNo Glass/Lens
ConstructionMetallic
MaterialDie Cast Aluminum
Base Unit of MeasureEA
Box Type1-Gang
Carton - Number of Sub Packs8
Carton - SCC-14 Next Lower Level Sub Pack50169562000
Each - Pack DescriptionEach
Lowest Level UOMEach
Package Length5 in
Package Width2.844 in
Pallet - Number of Sub Packs140
Pallet - SCC-14 Next Lower Level Sub Pack50050169562005
Pallet Height44.375 in
Pallet Weight873.800 lb.
Certifications
- Certified Listed
- UL Listed;CSA Certified
EU RoHS IndicatorYes
