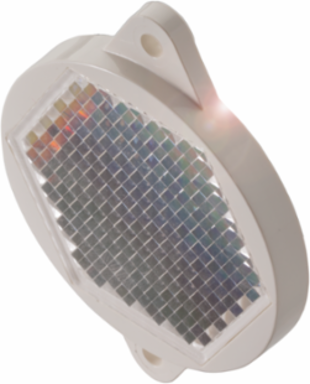

Balluff BOS R-10 Reflectors & Reflective Foils Ø 62 x 8.8 mm for Retro-Reflective Sensors

Reflectors & Reflective Foils Ø 62 x 8.8 mm for Retro-Reflective Sensors
  • MPN: BOS R-10
  • PPN: BAL-BAM0126

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$18.43/ EA

Description

Designed for precision and reliability, the Balluff BOS R-10 Reflector is an essential component for retro-reflective sensors, boasting a sensing surface area of 20.4 cm². Crafted from durable PMMA material, this cylindrical reflector measures Ø 62 x 8.8 mm and is engineered to perform effectively in ambient temperatures ranging from -20 to 60 °C. With the capability to work with both non-polarized and polarized light, it features two mounting holes for versatile installation options, ensuring that it can be securely fastened using glue or an M4 screw. This reflector is a testament to German engineering, making it a dependable choice for various industrial applications.

Specifications

Ambient Temperature Range
-20 to 60 6C
Diameter
62 mm
Sensing Surface Area
20.4 cm8
Mounting Hole Size
M4
Fastening Detail
Glue; Screw M4
Country of Origin
Germany
Light CompatibilityNon-polarized, Polarized
Length8.8 mm
Material Sensing SurfacePMMA
StyleCylinder; 2 mounting holes
VersionCube corner 4 mm
