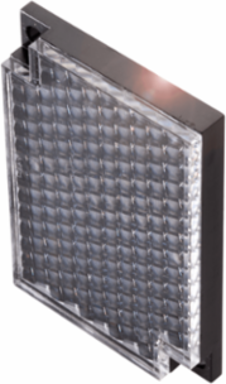

Balluff BOS R-36 Reflectors and reflective foils BOS R-36
- MPN: BOS R-36
- PPN: BAL-BAM01CM
CAD
$51.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The right reflector for any environment: our round and square reflectors and reflective foils are heat- and chemical-resistant. They are suitable for red light, white light, infrared and laser applications. Balluff reflectors can be used optimally for applications with BOS sensors. You can choose between different sizes and mounting options.
Documentation & Downloads
Specifications
Key Specifications
- Version
- Cube corner 4 mm
- Style
- Square, 2 mounting holes
- Sensing surface
- 19.9 cm²
- Material sensing surface
- PMMA/Anti-fog coating
- Light type
- non-polarized light, also for polarized light
Usefor retro-reflective sensor
Dimension40 x 60 x 7.5 mm
Ambient temperature-20-60 °C
MaterialABS
MountingGlue, Screw M3
