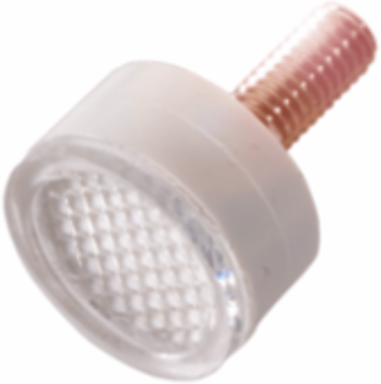

Balluff BOS R-38 Reflectors and reflective foils BOS R-38
- MPN: BOS R-38
- PPN: BAL-BAM01H7
CAD
$19.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The right reflector for any environment: our round and square reflectors and reflective foils are heat- and chemical-resistant. They are suitable for red light, white light, infrared and laser applications. Balluff reflectors can be used optimally for applications with BOS sensors. You can choose between different sizes and mounting options.
Documentation & Downloads
Specifications
Key Specifications
| Version | Cube corner 0.9 mm |
|---|---|
| Style | Cylinder with threaded pin |
| Sensing surface | 0.3 cm² |
| Material sensing surface | PMMA |
| Light type | non-polarized light, also for polarized light |
| Use | for retro-reflective sensor, Laser |
|---|---|
| Dimension | Ø 10 x 13.6 mm |
| Ambient temperature | -20-60 °C |
| Material | ABS |
| Mounting | M3 nut |
