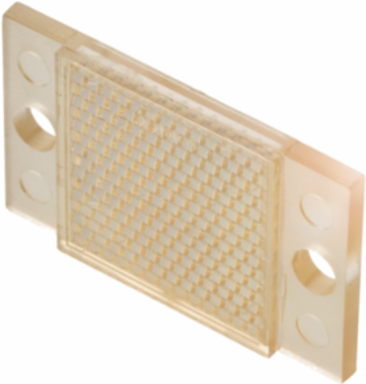

Balluff BOS R-55 Reflectors and reflective foils BOS R-55
- MPN: BOS R-55
- PPN: BAL-BAM023T
CAD
$86.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The right reflector for any environment: our round and square reflectors and reflective foils are heat- and chemical-resistant. They are suitable for red light, white light, infrared and laser applications. Balluff reflectors can be used optimally for applications with BOS sensors. You can choose between different sizes and mounting options.
Documentation & Downloads
Specifications
Key Specifications
- Version
- Cube corner 1.1 mm
- Style
- Square, 2 mounting holes
- Sensing surface
- 2.7 cm²
- Material sensing surface
- Solidchem
- Light type
- non-polarized light, also for polarized light
- Approval/Conformity
- Solidchem, TÜV Rheinland, Ecolab, WEEE
Usefor retro-reflective sensor, Laser
Dimension20 x 32 x 3 mm
Ambient temperature-20-140 °C
MaterialSolidchem
MountingScrew M3
