Wiegmann WA72RA24TH Relay Rack Angle 72 Inch Freestanding Carbon Steel 24X61.25 White
- MPN: WA72RA24TH
- UPC: 786725418145
- PPN: HBL-WA72RA24TH
- UNSPSC: 39121324
CAD
$752.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

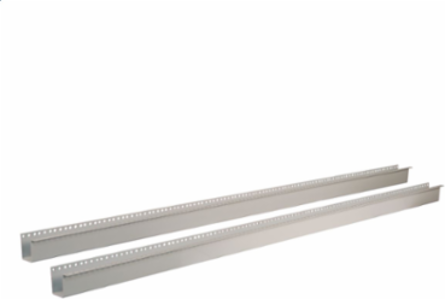

Relay Rack Angle N4/12 72 Inch Freestanding 24X61.25 Carbon Steel - White
Features
- Fabricated from carbon steel
- Painted with white polyester powder
- Rack angle is installed on provided mounting channels
- Through holes (7/32 Dia.) are provided and require a W1032N clip nut (ordered separately). Rack angles are mounted on unistrut within freestanding enclosures and are adujustable. If used in two-door enclosures, a center panel support must be ordered. White smooth hybrid finish.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Application | For use with freestanding NEMA 12 and NEMA 4 enclosures. Designed for mounting 19 inch and 24 inch rack-mounted equipment. |
| Height | 61 in |
| Type | Accessory |
| Weight | 20 lb. |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | ANGLES,RACK,MT.CS,61 1/4" 24" |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 20.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Actual Height | 61.25 in |
|---|---|
| Color | White |
| Special Features | Through holes (7/32 Dia.) are provided and require a W1032N clip nut (ordered separately). Rack angles are mounted on unistrut within freestanding enclosures and are adujustable. If used in two-door enclosures, a center panel support must be ordered. White smooth hybrid finish. |
| Width | 74 in |
| Accessory Type | Relay Rack Angle |
| Class Code | P05 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P05P076 |
| Construction | Flanged |
| Series | WA-SOF Series or WA Series |
| BOX SIZE | 61.250x4.250x74.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725418145 |
| NAICS Code | 3359326208 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|
