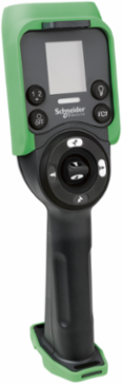

Schneider Electric ZART8DM Harmony eXLhoist Hand-held Remote Control with 6 Motion Buttons, IP65, 50 m Range
- MPN: ZART8DM
- PPN: SCH-ZART8DM
CAD
$1438.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Harmony eXLhoist Hand-held Remote Control from Schneider Electric is designed for efficient and reliable operation in various industrial applications. Featuring six motion buttons, this remote provides precise control of machinery from a distance of up to 50 meters, enhancing safety and convenience during operation. With an IP65 rating, it is engineered to withstand dust and water ingress, making it suitable for use in challenging environments. This remote control is an excellent addition to any electrical system, enabling seamless interaction while ensuring durability and performance in demanding conditions.
Documentation & Downloads
Specifications
Additional
- Operating Temperature Range
- -20 to 60 °C
- Maximum Sensing Distance
- 100 m in free field
- Autonomy
- 30 h
- Mechanical Durability
- 5,000,000 cycles

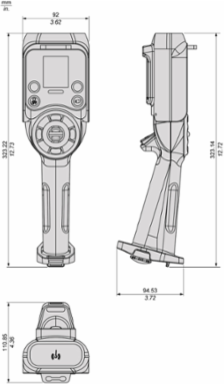

- Height
- 340 mm (13.39 in.)
- Depth
- 90 mm (3.54 in.)
- Material
- Polycarbonate (PC), Polybutylene Terephthalate (PBT), Polypropylene (PP), EPDM rubber
- NEMA Rating
- NEMA 4
- Communication Network
- Wireless Bluetooth Low Energy
- Shock Resistance
- 100 gn IEC 60068-2-27
- Certifications
- CSA, KC, C-Tick, UL, EAC, CE, JIS
Operating Distance50 m
Response Time< 300 ms full duplex
Charging Time900 s
Service Life5 years
Width100 mm (3.94 in.)
Net Weight0.65 kg (1.43 lb)
IP RatingIP65
Transmission Frequency2.4 GHz
Vibration Resistance0.075 mm (10-55 Hz) IEC 60068-2-6
Relative Humidity0 to 95% (-20 to 60 °C operating)
RoHS CompliancePro-active EU RoHS, Mercury Free, China RoHS
