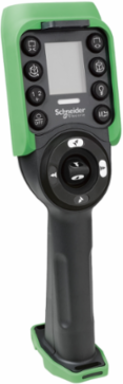

Schneider Electric ZART12DM Harmony eXLhoist Remote Control, 6 Motion Buttons, Wireless, IP65, 0.65 kg

MPN: ZART12DM
PPN: SCH-ZART12DM
UNSPSC: 39121326

$1953.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Harmony eXLhoist Remote Control by Schneider Electric provides a reliable and efficient solution for managing various motions with ease and precision. Featuring six motion buttons, this wireless remote allows for seamless control in demanding environments, characterized by its IP65 rating that ensures protection against dust and water ingress. Weighing just 0.65 kg, this device is designed for convenient handling and installation, making it an essential tool for applications requiring safe and flexible operation. Whether used in industrial settings or complex machinery, this remote control merges robust functionality with a user-friendly interface, enhancing operational productivity.

Documentation & Downloads

Specifications

Key Specifications

Depth	90 mm

Communications & Management Attributes

Communication Network Type	wireless bluetooth low energy

Complementary Attributes

Maximum Sensing Distance	100 m in free field

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Button Type	6 configurable motion push-button, 6 configurable auxiliary push-button
Function Available	accelerometer function, vibrator function
Radio Agreement	ANATEL, ICASA, RSS, FCC, ARIB, SRRC
Certificate Agency	JIS, CE, CSA, UL, C-tick, KC, EAC
Local Publishable Date	2026-03-31
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312040EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1415
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier Id	2
Function Option Id	ADVANCED
Product Kit Identifier	N
Charging Time	900 s
Display Type	LCD display 34 x 42 mm
Mechanical Robustness	free fall resistance 4.5 m IEC 60068-2-27
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony eXLhoist
Service Life	5 year(s)
Sustainable Packaging	No
Vibration Resistance	0.075 mm 10-55 Hz)IEC 60068-2-6
Height Nominal	340 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Device Application	master in multiple bridge control (tandem), slave in multiple bridge control (tandem), master and slave in multiple bridge control (tandem)
Material	enclosure PC (polycarbonate), enclosure PBT (polybutylene terephthalate)Cover PP (polypropylene)protective cover EPDM rubber
Response Time	< 300 ms full duplex, < 300 ms full duplex< 300 ms full duplex, < 300 ms full duplex
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package
Tier	2
Function Option	Advanced
Autonomy	30 h
Device Short Name	ZART
Mechanical Durability	5000000 cycles
Operating Distance	50 m
Product Or Component Type	hand-held remote control
Returnability	Yes
Shock Resistance	100 gn IEC 60068-2-27
Transmission Frequency	2.4 GHz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	100 mm
Customs Code	8537109170

Environment Attributes Main

Ambient Air Temperature For Operation	-20-60 °C, -20-60 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2312040EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 4
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Storage Altitude	0-3000 m

Ambient Air Temperature For Storage	-20-45 °C, -20-45 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312040EN
Ip Degree Of Protection	IP65
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	0-95 % -20-60 °C operating
Pep Code	ENVPEP2312040EN
