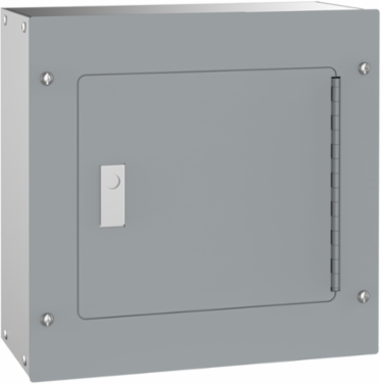

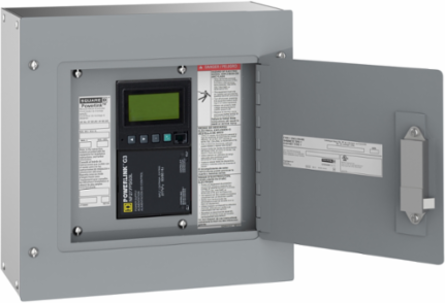

Square D RMC3500G4120 Powerlink accessory, remote mount controller, for externally mounted electronics, 120V
- MPN: RMC3500G4120
- PPN: SCH-RMC3500G4120
- UNSPSC: 39121552
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Powerlink integrates overcurrent protection, automated lighting controls, and advanced energy metering into a single standard panelboard. Delivering comprehensive energy management in one powerful solution. This intelligent panel enables centralized remote monitoring and control of circuits, panelboards, and lighting systems. This unit is a remote mount controller for externally mounted electronics. It is rated for 120VAC and includes a NEMA 1 enclosure, NF3500G4 controller, and power supply. It has dimensions of 12 inches Height, 12 inches Width and 6 inches Depth. Its design is fully compliant to meet building and energy code standards including NEMA, NEC, ULTM, FCC emissions, ESD immunity, RF susceptibility, electrical fast transient susceptibility, electrical surge susceptibility, California Title 24 and seismic compliance.
Features
- Surface-mount NEMA 1 enclosure, with cover
- Unit and C-Bus LEDs indicate the status of the line voltage and the network
- Sources up to 700 mA to the C-Bus network
- 133 V or 277 V AC models available
- UTP connection jumper included for dual supply
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 6 in |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus TCP, BACnet IP |
|---|
| Communication Network Type | 10/100 Base-T Ethernet for web/ SNMP/ Telnet management |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Awg Gauge | 24 AWG...18 AWG |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Height Nominal | 12 in |
| Certificate Agency | UL Listed |
| Customs Code | 8537109170 |
| Persona Type Names | End User, Contractor |
|---|---|
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Or Component Type | lighting control module |
| Sustainable Packaging | No |
| Width Nominal | 12 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Ambient Air Temperature For Operation | 10-40 °C |
| Packaging Made With Recycled Cardboard | No |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | lighting control module |
|---|
Output Attributes
| Number Of Outputs | 8 |
|---|
Input Attributes
| Number Of Inputs | 16 |
|---|
