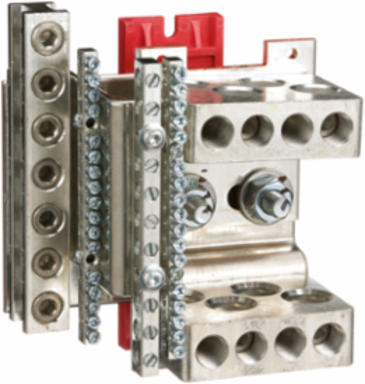

Square D HCPSU8SN I-Line Power Distribution Panelboard Solid Neutral Assembly 800A
- MPN: HCPSU8SN
- UPC: 785901215196
- PPN: SCH-HCPSU8SN
- UNSPSC: 39121112
CAD
$1480.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This Square D 800A I-Line Solid Neutral is an electrical accessory for a HCP-SU distribution board. This product has UL & CSA certifications.
Features
- This I-Line® panelboard solid neutral assembly is rated for 800A and provides a neutral connection for HCP-SU interiors
- I-Line® panelboards provide flexibility and versatility for feeding lighting and appliance panelboards
- The assembly terminals are: (4) 3/0 AWG-600kcmil, (7) 6 AWG-350kcmil, (9) 1/0-14 AWG , and (34) 4-14 AWG
- Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 800 A |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Destination | HCP-SU distribution board |
| Range Of Product | Square D |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2026-08-27 |
|---|---|
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | solid neutral |
| Returnability | Yes |
| Accessory / Separate Part Category | electrical accessory |
| Customs Code | 8536904000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP1407017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1407017EN |
General Attributes
| Product Or Component Type | solid neutral |
|---|
| Range Of Product | Square D |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
