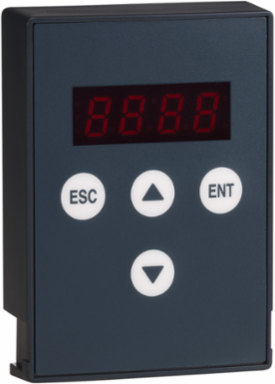

Schneider Electric VW3G22101 Altistart 22 Remote Terminal for Soft Starter, IP54, 50mm x 70mm x 15mm

Altistart 22 Remote Terminal for Soft Starter, IP54, 50mm x 70mm x 15mm
  • MPN: VW3G22101
  • PPN: SCH-VW3G22101

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$102.37/ EA

Description

This terminal is an accessory of soft start/soft stop Altistart 22 range. It enables the human machine interface of the Altistart 22 soft start/soft stop unit to be positioned remotely on the door of an enclosure. Its protection index is IP54. It weighs 250g and its dimensions are, 50mm wide, 70mm high, 15mm deep. It is used to set and configure the soft start/soft stop unit remotely and display the soft start/soft stop unit status and detected errors remotely. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.

Specifications

Specifications

Range Of Product
Altistart 22
Accessory / Separate Part Category
control accessories
Product Compatibility
ATS22
Ip Degree Of Protection
IP54
Accessory / Separate Part Designationremote terminal
Accessory Dimension50 x 15 x 70 mm
Accessory / Separate Part Typeremote terminal
Accessory / Separate Part Destinationsoft starter for asynchronous motor

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Net Weight
0.25 kg

Contractual warranty

Warranty
18 months
