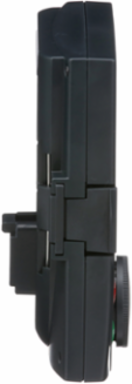

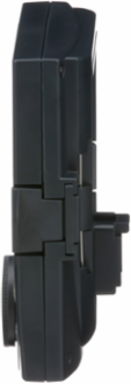

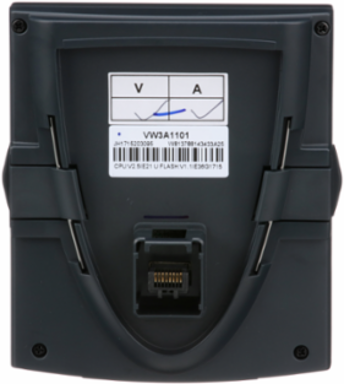

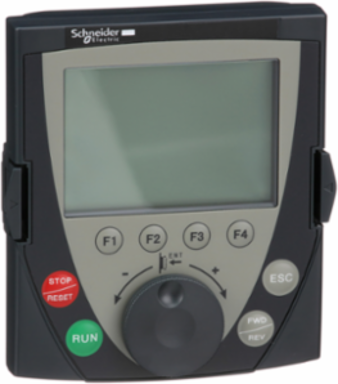

Remote Graphic Terminal, 240 x 160 Pixels, IP54, for Altivar Drives
Schneider Electric

Schneider Electric VW3A1101 Remote Graphic Terminal, 240 x 160 Pixels, IP54, for Altivar Drives

  • MPN: VW3A1101
  • PPN: SCH-VW3A1101
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $383.57

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Altivar 71 Variable Frequency Drives are for constant torque applications from 1 to 700 HP. For the latest in high performance drives for heavy duty applications consider using an Altivar Process ATV900 family drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.

    Features

    • The Schneider Electric VW3A1101 is engineered for seamless plug-and-play integration across a broad range of Altivar variable speed drives, including the Altivar 212, 312, 32, 61, and 71 series, as well as modern ATV320 machine drives. This universal series compatibility means you can stock a single backup remote display terminal to service and program multiple drive models across your facility floor, significantly minimizing replacement overhead and inventory complexity.
    • This graphic display module is purpose-built for external panel mount applications on the door of an enclosure, pulling control away from hazardous or tight interior environments. This eliminates the need for maintenance technicians to open the main electrical cabinet and expose themselves to high-voltage risks just to modify drive parameters, perform routine diagnostics, or check input/output status.
    • Featuring a robust IP54 protection index, this terminal keypad is thoroughly sealed against dust ingress and water splashes, making it highly reliable for demanding manufacturing plants, processing facilities, and HVAC systems. With a resilient operating temperature range spanning from -15 C to 50 C, the unit resists early degradation and screen failure caused by ambient heat or unconditioned automation environments.
    • Designed with a high-visibility 240 x 160-pixel resolution, the LCD screen supports an 8-line message display capability that details plain-text system performance data and precise motor fault indicators. Operators no longer have to decipher cryptic four-character LED fault codes or flip through technical manuals during critical production stops, accelerating troubleshooting times and reducing overall facility downtime.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Singapore, United States

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Product Specific Application
    to control, adjust and configure the drive, to save and download configurations, to display the current values
    Carbon Footprint Of The Distribution Phase [A4]
    0.055867, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.014866, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    52 kg CO2 eq., 51.72
    Local Publishable Date
    2026-01-12
    Future Imap
    200.08
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Use Carbon Footprint
    51.72
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2009
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Messages Display Capacity
    8 lines
    Pixel Resolution
    240 x 160
    Product Or Component Type
    Graphic terminal
    Returnability
    Yes
    Sustainable Packaging
    No
    Pep Code
    ENVPEP2010007EN
    Pep Verification Date
    2020-12-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    referent product
    Functional-unit Quantity
    1
    Energy Consumption On Product Lifetime, In Kwh
    87.6
    Energy Model - Installation [A5]
    Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; AC; < 1kV; EU-27
    Accessory / Separate Part Category
    display and signalling accessories
    Accessory / Separate Part Type
    display terminal
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Total Life Cycle
    6809.9
    Air Pollution (M3) Distribution [A4]
    2.3765
    Air Pollution (M3) End Of Life [C1-c4]
    2.7908
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    582.25
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    0.3034
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
    50.083
    Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]
    0.1511
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    79.303
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    0.1349
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    15.692
    Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
    0.1577
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    642.43
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
    1706.9
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
    0.1916
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    90.314
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    74.975
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    4.1996
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    638.23
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    4.899
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    85.415
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    74.975
    Water Pollution (M3) Manufacturing [A1-a3]
    3296.6
    Water Pollution (M3) Installation [A5]
    2.2075
    Water Pollution (M3) End Of Life [C1-c4]
    7.4047
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner
    Market SegmentationCommercial, Industrial
    User LanguageItalian, English, French, Spanish, German, Chinese
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1511
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]50 kg CO2 eq., 50.083
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp222.31
    Stock Policy1
    ServiceabilityNo
    Manufacturing Carbon Footprint50.083
    End Of Life Carbon Footprint0.1511
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Mounting Locationon the door of an enclosure
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductAltivar
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint102 kg CO2 eq.
    Database Version2018-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo control, adjust and configure a variable speed drive, it can be monting on the door of an enclosure. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
    Recyclability Potential, In %34
    Accessory / Separate Part Destinationvariable speed drive
    Carbon Footprint (Kg Co2 Eq, Total Life Cycle)102.03
    Package Weight(Lbs)306.000 g
    Warranty (In Months)18
    Air Pollution (M3) Manufacturing [A1-a3]4585.9
    Air Pollution (M3) Operational Energy Use [B6]2218.1
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle1116.3
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]532.78
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle102.03
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]51.72
    Hazardous Waste Disposed Of (Kg) Total Life Cycle79.685
    Net Use Of Fresh Water (M3) Total Life Cycle0.8224
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle209.17
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]193.46
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle1616.6
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]972.84
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]657.77
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1047.8
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]15.337
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle4.1996
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1612.4
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]972.84
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4.899
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]10.438
    Water Pollution (M3) Total Life Cycle5485.6
    Water Pollution (M3) Distribution [A4]9.1871
    Water Pollution (M3) Operational Energy Use [B6]2170.2

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C, -15-50 °C
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2010007EN
    Ip Degree Of Protection
    IP54
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP2010007EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint102.03
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    Graphic terminal
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
