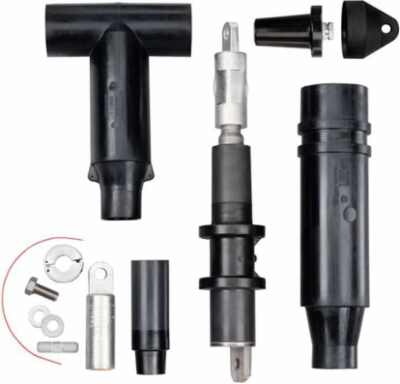

Thomas & Betts K656RLR-J0300 REPLACEMENT ELBOW,600A,15KV W/ TP
- MPN: K656RLR-J0300
- UPC: 783786392087
- PPN: T-B-K656RLR-J0300
- UNSPSC: 39121421
CAD
$3148.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- Used where Cable has been severed and is not long enough to reach the Elbow.
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Length 31.56 inches
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20120404
IncludesElbow Connector Housing, Lubricant, Stud, Replacement Housing, Insulated Plug, Cable Adapter, Connector, Adapter Retaining Ring, Installation Instructions, Crimp Chart
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Replacement Elbow Connector with Test Point
Special FunctionsFully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Rubber. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Non-Corrosive Capacitive Test Point.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
