Schneider Electric NSYCUACC021DG Retrofit kit for Roof Connected Cooling Unit, Climasys CU, 3 - 4kW

MPN: NSYCUACC021DG
PPN: SCH-NSYCUACC021DG
UNSPSC: 31162313

$1282.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

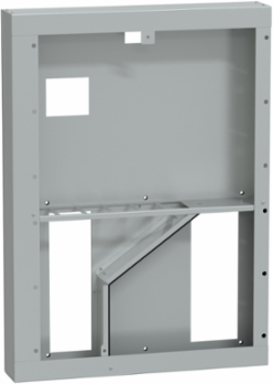

This Accessory is a Retrofit kit for Roof Connected Cooling Unit. It's made with galvanized steel and its color is RAL 7035. Its dimensions (HxWxD) are 105x795x575mm. Its IP index is IP54.

Features

Recommended to save time and ease the installation of a new Cooling unt in place of an existing Cooling Unit
Easy installation
Kit to mount a new Roof Connected Cooling Unit in place of an existing Schneider Roof CU
RAL 7035 grey

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Malta
Width	31.3 in

Height	4.13 in
Depth	575 mm

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 adaptor top of enclosure, fixing elements, gasket
Local Publishable Date	2026-08-19
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Enclosure Mounting	roof
Material	galvanized steel
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Name	CU
Range	ClimaSys
Returnability	No
Height Nominal	105 mm
Width Nominal	795 mm
Accessory / Separate Part Type	mounting kit
Customs Code	7326908688

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2327
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	adapt old offer
Fixing Mode	by bolt
Mounting Location	top of enclosure
Product Destination	top-mounting cooling unit 3200 W 3000 Wtop-mounting cooling unit 4000 W 4000 W
Product Or Component Type	retrofit kit
Range Of Product	ClimaSys
Sustainable Packaging	No
Height Useful	105 mm
Width Real	795 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Ip Degree Of Protection	IP54
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
