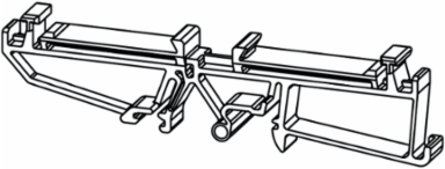

Weidmuller 1020690000 RF 108 OR
- MPN: 1020690000
- PPN: WDM-1020690000
CAD
$2.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electronics housings orange, Clip-in foot, Width: 107.2 mm
Documentation & Downloads
Specifications
System Characteristics
| Version | Clip-in foot |
|---|---|
| Contact to terminal rail | No |
| Encapsulation option | No |
| Cross-connection | No |
|---|---|
| Protection degree | IP20 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 79.2 mm |
|---|---|
| Width | 107.2 mm |
| Height | 26.2 mm |
| Net weight | 8.15 g |
| Length (inches) | 3.118 inch |
|---|---|
| Width (inches) | 4.22 inch |
| Height (inches) | 1.031 inch |
Material Data
| Insulating material | PA |
|---|---|
| Colour chart (similar) | RAL 2000 |
| UL 94 flammability rating | V-0 |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
| Colour | orange |
|---|---|
| Comparative Tracking Index (CTI) | ≥ 600 |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
Classifications
| ETIM 6.0 | EC002779 |
|---|---|
| eClass 9.0 | 27-18-27-90 |
| eClass 10.0 | 27-18-27-92 |
| ETIM 7.0 | EC002779 |
|---|---|
| eClass 9.1 | 27-18-27-90 |
Notes
| Descriptive text technical data | 2 optional positions for the PCBDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: +0.5 mmDimension of RS section = PCB length - 5 mmExample:PCB length 160 mm, RS section = 155 mm |
|---|
