Weidmuller 8140880000 PF RS 45 GR 1000MM
- MPN: 8140880000
- PPN: WDM-8140880000
CAD
$118.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

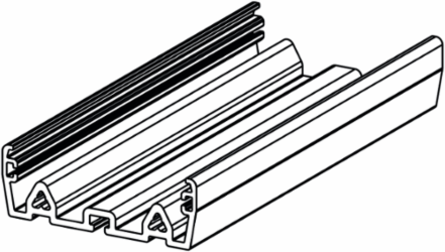

Electronics housings, RS 45 Pebble grey, Width: 45 mm
Documentation & Downloads
Specifications
System Characteristics
- Number of PCBs per module
- 1
- Tolerance for the PCB shape
- ±0.2
- Contact to terminal rail
- No
- Encapsulation option
- No
PCB thickness1.6 mm
Cross-connectionNo
Protection degreeIP20
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 1,000 mm
- Width
- 45 mm
- Height
- 25 mm
- Net weight
- 227.997 g
Length (inches)39.37 inch
Width (inches)1.772 inch
Height (inches)0.984 inch
Material Data
- Insulating material
- PVC
- Colour chart (similar)
- RAL 7032
- UL 94 flammability rating
- V-0
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
ColourPebble grey
Comparative Tracking Index (CTI)≥ 600
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.60 °C
Temperature range, installation, max.60 °C
Classifications
- ETIM 6.0
- EC002779
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC002779
eClass 9.127-18-27-90
UNSPSC30-21-18-01
Notes
- Descriptive text technical data
- 3 heights are available for the cover profile and the end plates:TS mounting: TS 32 = 45 mm, TS35x7.5 = 40.5 mmDirect mounting: 24 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 42 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 159 mm
