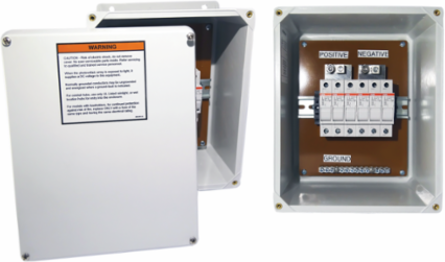

nVent Hoffman RF-2-3 RF Solar Combiner Box, 11.32x9.32x5.39, 3 contacts, Fiberglass
- MPN: RF-2-3
- UPC: 635394584609
- PPN: HOF-RF-2-3
- UNSPSC: 39121309
CAD
$326.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RF Solar Combiner Boxes offer exterior protection and improve connection efficiency with busbars. This RF Solar Combiner Box, RF-2-3 item measures 11.32x9.32x5.39in with a material of Fiberglass color Light Gray.
Features
- Mountable on solar rail using brackets
- Works with grounded string inverters
- Fiberglass enclosure with twenty year usable outdoor life
- Touch-Safe fuse holders
- Input Wire Size Range: #6 - #14 AWG
- Connector Type: Screw Clamp
- Maximum Current Per Terminal: 24A
- Maximum Fuse Size: 30A
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 237
- Protection Rating
- NEMA Type 3
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Nominal Voltage
- 1,000
- Number of Contacts
- 3
- Max Heating Cable Output Wire Size
- #6 - 250 kcmil
- Weight
- 5.1
Height (H)288
Depth (D)137
MaterialFiberglass
ColorLight Gray
Thickness (T)3.3
Nominal Voltage TypeAC/DC
Max Power Supply Input Wire Size#6 - #14
Max Current72
