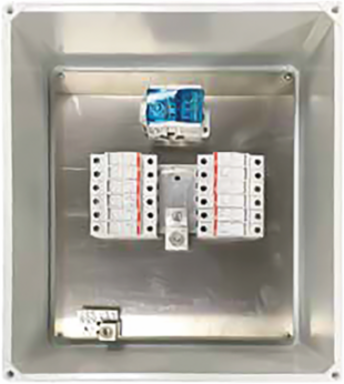

nVent Hoffman RF-8 RF Solar Combiner Box, grounded, 17.32x15.32x6.65, 8 contacts, Fiberglass

RF Solar Combiner Box, grounded, 17.32x15.32x6.65, 8 contacts, Fiberglass
  • MPN: RF-8
  • UPC: 635394585736
  • PPN: HOF-RF-8
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$409.23/ EA

Description

RF Solar Combiner Boxes offer exterior protection and improve connection efficiency with busbars. This RF Solar Combiner Box, RF-8 item measures 17.32x15.32x6.65in with a material of Fiberglass color Light Gray.

Features

  • Mountable on solar rail using brackets
  • Works with grounded string inverters
  • Fiberglass enclosure with twenty year usable outdoor life
  • Touch-Safe fuse holders
  • Input Wire Size Range: #6 - #14 AWG
  • Connector Type: Screw Clamp
  • Maximum Current Per Terminal: 24A
  • Maximum Fuse Size: 30A

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
389
Protection Rating
NEMA Type 3
Finish
Smooth Matte
Color Code
RAL 7035
Nominal Voltage
1,000
Number of Contacts
8
Max Heating Cable Output Wire Size
#3/0 - 350 kcmil
Weight
7.1
Height (H)440
Depth (D)169
MaterialFiberglass
ColorLight Gray
Thickness (T)3.3
Nominal Voltage TypeAC/DC
Max Power Supply Input Wire Size#6 - #14
Max Current192
