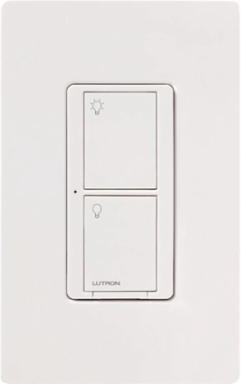

Lutron PD-5WS-DV-WH Caseta Wireless In-Wall Switch, 5A Lighting & 3A Fan, No Neutral Required, White

MPN: PD-5WS-DV-WH
UPC: 784276041133
PPN: LUT-PD-5WS-DV-WH
UNSPSC: 39122216

$143.00

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

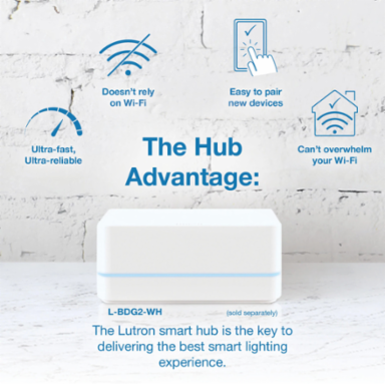

The Lutron Caseta In-Wall Switch PRO is UL listed to work with up to 5 Amp of lighting (LED/ELV/MLV/Incandescent/Halogen), and 3 Amp of general-purpose fans. Can use either 120V or 277V. No neutral required. The Lutron minimum load capacitor (LUT-MLC) is included to assist non-neutral based digital switches in meeting minimum load requirements. This in-wall switch PRO is compatible with single pole and 3-way applications with an existing 3-way switch. For 4-way or multi-location applications, a Pico Remote control is required. Replace the existing switch with a Pico remote control and wall plate adapter to switch from every location (PICO-WBX-ADAPT sold separately). Use the Lutron Smart Hub (L-BDG2-WH) to connect the Lutron Caseta Use the Lutron Smart Hub to connect the Caseta Smart Switch Pro to leading smart home devices - including Alexa, Apple Home, Google Home, Ring, Sonos, and more. The smart hub doesn't rely on Wi-Fi to control lights which avoids slowing down internet speeds and allows you to stay connected even when the Wi-Fi goes down. The hub also unlocks advance features like Smart Away which randomly turns lights on and off, to make it look like you're home, even if you're away (Lutron Smart Hub, L-BDG2-WH required). Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans. Offers large on and off buttons. 2-wire switch ideal for retrofit applications.
Includes: One (1) Lutron Caseta In-Wall Smart Switch PRO; Gloss Finish
Works with up to 5A lighting or 3A general purpose fan
No Neutral Required; 120V/277V
Lutron minimum load capacitor (LUT-MLC) is included to assist non-neutral based digital switches in meeting minimum load requirements

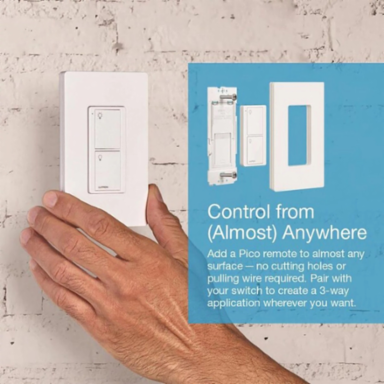

Add a 2nd switch anywhere by pairing with a mountable Lutron Pico Remote (sold separately), or wire it to an existing mechanical switch to create a 3-way application
4-Way/Multi-location application require use of Pico Remotes
Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls); 60ft direct line-of-sight or 30ft through walls of a Lutron Smart Hub
Pair up to ten (10) Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta Smart switch (limitations reflect when no Lutron Smart Hub installed)
Add a Lutron Smart Hub to connect with Alexa, Apple Home, Google Home, Ring, Serena Shades, SONOS, and more
Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
Offers large on and off buttons. 2-wire switch ideal for retrofit applications

Documentation & Downloads

Specifications

Additional

Voltage	120/277 V
Wattage	25 -1350 W
Material	Metal, Plastic
Mounting	Wallbox
Color	White
Contact Configuration	N-O
Application	Lighting Control
Enclosure	Plastic

Amperage Rating	3 - 5 A
Size	2 15/16 In x 4 11/16 In (75 mm x 119 mm)
Finish	Gloss
Connection	Wire Leads
Switch Type	Two-wire
Actuator	Tapswitch
Model	Wireless in-wall electronic switch, multi-location, 3-way, single-pole
Insulation	Plastic
