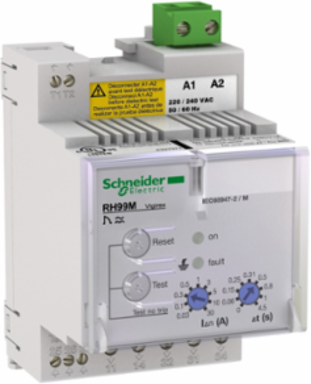

Schneider Electric 56473TD Vigirex RH99P Residual Current Protection Relay, 240VAC, 0.03-30 A
Schneider Electric 56473TD Vigirex RH99P Residual Current Protection Relay, 240VAC, 0.03-30 A
- MPN: 56473TD
- UPC: 785901153016
- PPN: SCH-56473TD
- UNSPSC: 39121613
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2218.18/ EA
Description
Designed for reliable earth leakage protection, the Vigirex RH99P residual current protection relay from Schneider Electric is engineered to enhance safety in electrical systems. This robust monitoring relay operates at 240VAC and features a manual time delay adjustment, allowing for precise sensitivity settings across a range of 0.03 to 30 A. With its front panel mounting capability and compliance with various international standards, including UL and IEC, this device is suitable for diverse applications in power distribution and circuit protection. Its compact design, combined with a wide operational temperature range and excellent electromagnetic compatibility, ensures that it can withstand challenging environments while providing continuous monitoring and protection against electrical faults.
Features
- Vigirex relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
- Continuous monitoring of the power supply, the relay/toroid link and internal electronics
- Reinforced insulation of Vigirex relays (overvoltage category IV)
- Access to settings protected by a lead-sealable cover or password
- Green Premium labelled products, RoHS and REACH compliant
Specifications
Physical Attributes
- Wire Stripping Length
- auxiliary power supply: 7 mm, fault: 7 mm, relay test and fault reset: 7 mm, sensor: 7 mm, voltage presence: 7 mm
Conformance Attributes
- Standards
- EN/IEC 60947-2 Annex M, EN/IEC 60755, UL 1053, CAN/CSA C22.2 No. 144
Complementary Attributes
- Network Rated Voltage
- 1000-1000 V - AC 50/60 Hz maximum), 1000-1000 V - AC 400 Hz maximum)
Minimum Load10 mA 12 V
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Earthing System
- TT, TN-S
- Mechanical Robustness
- fire resistance IEC 60695-2-1, IK protection 2 joulesIK07 EN 50102, vibrations 13.2...100 Hz0.7 g, vibrations 2...13.2 Hz+/- 1 mm
- Carbon Footprint Of The Distribution Phase A4
- 0.03143779518914882, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.05244381884677071, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 46 kg CO2 eq., 46.31700000000001
- Monitoring
- electronics continuous), power supply continuous), relay/sensor link continuous)
- Test Function
- local, remote test
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- Yes
- Field Service Division
- PPIBS
- WEEE Applicability
- Finished product
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Cut Out Dimensions
- 68 x 68 mm
- Electrical Shock Protection Class
- class II
- Halogen Free Status
- Product contains halogen above thresholds
- Overvoltage Category
- IV
- Power Consumption In VA
- 4 VA
- Product Or Component Type
- monitoring relay
- Range Of Product
- Vigirex
- Returnability
- No
- Tamperproof Of Settings
- protected by sealable cover
- Type Of Measurement
- earth fault current internal measurement 80...100 %
- Uimp Rated Impulse Withstand Voltage2
- 8 kV
- Medium Desc
- Residual current protection relay, Vigirex RH99P, manual time delay, 240VAC, front panel mounting, UL
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect during 10 years people and premises at risk of fire or explosion with assigned voltage 220-240V by detecting and measuring the earth leakage current sensitivity is selectable with 9 thresholds from 30 mA to 30 A.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Earth Leakage Current
- 0.03-30 A
- Threshold Setting
- 0.03...30 A alarm
- Global Commercial Status
- Commercialised
- Us Rated Supply Voltage5
- 240 V AC 50/60 Hz 70...110 %
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityconducted and radiated emissionsB CISPR 11, conducted radio-frequency immunity test3 IEC 61000-4-6, electrostatic discharge immunity test4 IEC 61000-4-2, high-energy conducted susceptibility4 IEC 61000-4-5, low-energy conducted susceptibility4 IEC 61000-4-4, radiated susceptibility3 IEC 61000-4-3
Tightening Torqueauxiliary power supply: 0.6-0.6 N.m, fault: 0.6-0.6 N.m, relay test and fault reset: 0.6-0.6 N.m, sensor: 0.6-0.6 N.m, voltage presence: 0.6-0.6 N.m
Carbon Footprint Of The End Of Life Phase C1 To C40.6 kg CO2 eq., 0.5867570085226158
Carbon Footprint Of The Manufacturing Phase A1 To A32 kg CO2 eq., 2.014500246460156
Connections Terminalsauxiliary power supply terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, auxiliary power supply terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12, auxiliary power supply terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12, fault terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, relay test and fault reset terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, sensor terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, voltage presence terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12
Residual Earth Leakage Time Delay Adjustment Typeinstantaneous for 0.03-0.03 A, adjustable 9 settings 0-4.5 s for 0.03-30 A
Connections Terminals3auxiliary power supply terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, auxiliary power supply terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12, auxiliary power supply terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12, fault terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, fault terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12, fault terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12, relay test and fault reset terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, relay test and fault reset terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12, relay test and fault reset terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12, sensor terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, sensor terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12, sensor terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12, voltage presence terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12, voltage presence terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12, voltage presence terminal block 0.25-2.5 mm² flexible with ferrule AWG 24...AWG 12
Local Publishable Date2025-07-10
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityYes
Average Life Duration15 year(s)
WEEE ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2310023EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Compatibility CodeRH99P
Device Short NameRH99P
Energy Efficiency OptimizedFalse
Mounting Supportfront panel
Package Weight Lbs240.404 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeVigirex
Relay Applicationmonitoring relay
Sustainable PackagingNo
Total Lifecycle Carbon Footprint49 kg CO2 eq.
Ithe Conventional Enclosed Thermal Current28 A
Us Rated Supply Voltage2240 V AC 50/60 Hz 70...110 %
Stocking FlagY
Pep CodeENVPEP2310023EN
Pep Verification Date2023-12-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Residual Earth Leakage Sensitity Adjustment Typeadjustable 9 settings
Type Of Settingselector
Uimp Rated Impulse Withstand Voltage58 kV
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 49.0021388690187
- Ambient Air Temperature For Storage
- -55-85 °C
- Environmental Disclosure
- ENVPEP2310023EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2310023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
IP Degree Of ProtectionIP40 on front face: conforming to EN/IEC 60529, IP30 on side parts: conforming to EN/IEC 60529, IP20 on connection terminals: conforming to EN/IEC 60529
Halogene PerformanceProduct contains halogen above thresholds
Mercury FreeYes
Ambient Air Temperature For Operation-35-70 °C
Circularity ProfileENVEOLI2310023EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Relative Humidity95-95 % 55-55 °C
Pep Verification Date2023-12-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- monitoring relay
Range Of ProductVigirex
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 78 mm
