Weidmuller 8869580000 RIM-I 1 6/230V
- MPN: 8869580000
- PPN: WDM-8869580000
CAD
$3.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

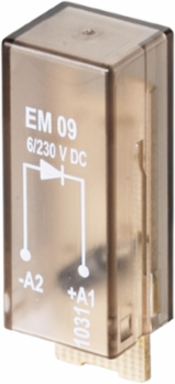

RIDERSERIES, Free-wheeling diode, Rated control voltage: 6…230 V DC, Plug-in connection
Documentation & Downloads
Specifications
General Data
| Colour | Transparent |
|---|
Approvals
| Approvals | cURus, EAC |
|---|---|
| UL File Number Search | E223759 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 11.4 mm |
|---|---|
| Height | 10.5 mm |
| Depth | 32.1 mm |
| Net weight | 1.8 g |
| Width (inches) | 0.449 inch |
|---|---|
| Height (inches) | 0.413 inch |
| Depth (inches) | 1.264 inch |
Connection Data
| Wire connection method | Plug-in connection |
|---|
Rated Data Ul
| Certificate No. (cURus) | E223759 |
|---|
Input
| Rated control voltage | 6...230 V DC |
|---|---|

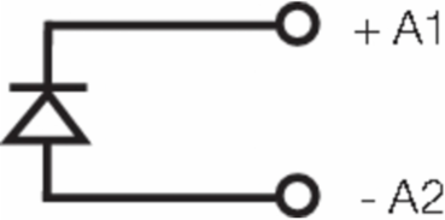

| Protective circuit | Free-wheeling diode |
| Status indicator | No |
|---|
Classifications
| ETIM 6.0 | EC002586 |
|---|---|
| eClass 9.1 | 27-37-10-10 |
| UNSPSC | 32-11-15-03 |
| ETIM 7.0 | EC002586 |
|---|---|
| eClass 10.0 | 27-37-10-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...70 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -40 °C...70 °C |
Further Details Of Approvals / Standards
| Standards | UL508 |
|---|
| Certificate No. (cURus) | E223759 |
|---|
