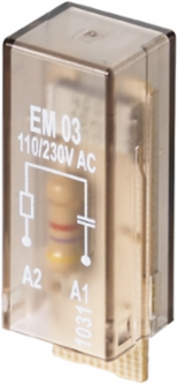

Weidmuller 1172210000 RIM-I 3 230VAC RC
- MPN: 1172210000
- PPN: WDM-1172210000
CAD
$30.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RIDERSERIES, RC filter, Rated control voltage: 230 V UC, Plug-in connection
Documentation & Downloads
Specifications
General Data
| Colour | Transparent |
|---|
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 11.4 mm |
|---|---|
| Height | 10.5 mm |
| Depth | 32.1 mm |
| Net weight | 2.3 g |
| Width (inches) | 0.449 inch |
|---|---|
| Height (inches) | 0.413 inch |
| Depth (inches) | 1.264 inch |
Connection Data
| Wire connection method | Plug-in connection |
|---|
Input
| Rated control voltage | 230 V AC |
|---|---|
| Protective circuit | RC element |
| Status indicator | No |
|---|---|
| RC filter | 1.1 kΩ / 200 nF |
Classifications
| ETIM 6.0 | EC002586 |
|---|---|
| eClass 9.1 | 27-37-10-10 |
| ETIM 7.0 | EC002586 |
|---|---|
| eClass 10.0 | 27-37-10-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...70 °C |
