Weidmuller 8869590000 RIM-I 2 6/24VDC
- MPN: 8869590000
- PPN: WDM-8869590000
CAD
$7.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

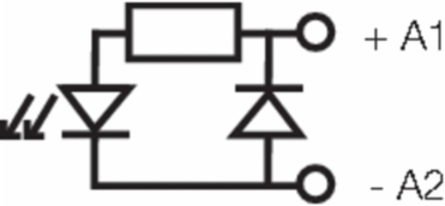

RIDERSERIES, LED module with freewheel diode, Rated control voltage: 6…24 V DC, Plug-in connection
Documentation & Downloads
Specifications
General Data
- Colour
- Transparent
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E223759
ROHSConform
Dimensions And Weights
- Width
- 11.4 mm
- Height
- 10.5 mm
- Depth
- 32.1 mm
- Net weight
- 2 g
Width (inches)0.449 inch
Height (inches)0.413 inch
Depth (inches)1.264 inch
Connection Data
- Wire connection method
- Plug-in connection
Rated Data Ul
- Certificate No. (cURus)
- E223759
Input
- Rated control voltage
- 6...24 V DC
- Protective circuit
- Free-wheeling diode
Status indicatorred LED
Classifications
- ETIM 6.0
- EC002586
- eClass 9.1
- 27-37-10-10
- UNSPSC
- 32-11-15-03
ETIM 7.0EC002586
eClass 10.027-37-10-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
Operating temperature, max.70 °C
Storage temperature, max.70 °C
Operating temperature-40 °C...70 °C
Further Details Of Approvals / Standards
- Standards
- UL508
Certificate No. (cURus)E223759
