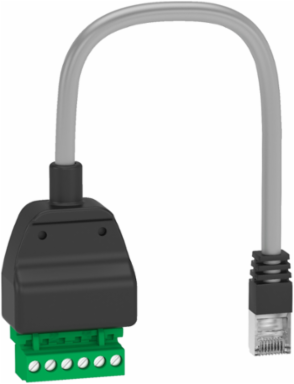

Schneider Electric LV434211 Modbus adaptor cable, ComPacT, MasterPact, RJ45 to open connector adaptor, 190mm length
- MPN: LV434211
- PPN: SCH-LV434211
CAD
$602.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modbus adaptor cable, ComPacT, MasterPact, RJ45 to open connector adaptor, 190mm length
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, Spain, France, Sweden, Singapore, United States |
|---|
Communications & Management Attributes
| Communication Network Type | Modbus |
|---|
Important Information Attributes
| Persona Type Ids | LC, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Connector Type | 1 RJ45, flat pin connector |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0070961603, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0232527004, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-07-10 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | DPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1908 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Connection Pitch | 5.08 mm |
| Energy Efficiency Optimized | False |
| Product Or Component Type | Modbus cable |
| Range | ComPact |
| Software Version | EIME v5.5 |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Pep Code | ENVPEP1609003_V2 |
| Pep Verification Date | 2016-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; < 1kV; EU-27 |
| [Ue] Rated Operational Voltage | 50 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544422000 |
| Persona Type Names | Contractor, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC, ComPact NS630b...1600, ComPact NS1600b...3200 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0305864979 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 1.6920042194 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | RJ45 to Open connector Modbus adaptor |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2015-04 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The main function of the IFM V2 MODBUS COMMUNICATION INTERFACE is to convert ULP protocol to Modbus serial in order to transmit Breaker Parameters like voltage, Current, Power Factor to supervisor during 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity Mix; AC; < 1kV; EU-27 |
| Length Total | 190 mm |
| Accessory / Separate Part Category | spare part |
| Package Weight(Lbs) | 56.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1.7529395781 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2016-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1609003_V2 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1609003_V2 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC, ComPact NS630b...1600, ComPact NS1600b...3200 |
|---|
| Product Or Component Type | Modbus cable |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
