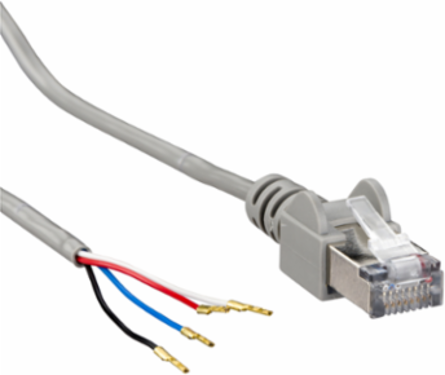

Schneider Electric LV434197 3m Communication Cable with RJ45 Connector for MasterPact and ComPacT NS
- MPN: LV434197
- PPN: SCH-LV434197
CAD
$492.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This breaker ULP cord is an ULP wiring accessory that connects Compact NS or Masterpact NT/NW devices to ULP devices. ULP devices are FDM121 display, IFM and IFE communication modules, or I/O module. The ULP cord is equipped with one RJ45 connector for the connection to ULP devices. The ULP cord is connected to the breaker directly on the connection terminals. The length is 3 m.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Localisation On Device
- external, internal
- Carbon Footprint Of The Distribution Phase [A4]
- 0.012953352138534022, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.05411269237317858, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2306024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1902
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Connector Type
- 1 RJ45
- Energy Efficiency Optimized
- False
- Product Or Component Type
- single-end prefabricated cable
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The BCM ULP module is independent of the trip unit, and it communicates two-way (send and receive information) with:& 10& 10• ULP system via the circuit breaker ULP cord& 10• MicroLogic trip unit via an infra-red link& 10• Modbus network& 10& 10and the lifetime is 10 years
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 3
- Accessory / Separate Part Category
- spare part
- Package Weight(Lbs)
- 94.000 g
- Warranty (In Months)
- 18
- Other Technical Guide Name
- ESXP1G003EN
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Range Of ProductComPact NS630b...1600, ComPact NS1600b...3200
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.12562611335810317
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.0059433224035645
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short Namecord L = 3 m
Product AvailabilityStock - Normally stocked in distribution facility
RangeMasterPact
Software Versionv5.9.4
Total Lifecycle Carbon Footprint7 kg CO2 eq.
Pep CodeENVPEP2306024EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Length Total3 m
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8544422000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7.19863548027338
- Environmental Disclosure
- ENVPEP2306024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2306024EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2306024EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- ComPact NS630b...1600, ComPact NS1600b...3200
Product Or Component Typesingle-end prefabricated cable
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
