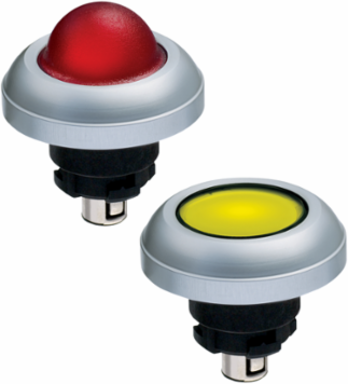

Schmersal 101188316 Illuminated Signal Light, 39.5 mm Diameter, IP65, Integrated Multi-LED

MPN: 101188316
PPN: SCM-101188316

$180.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

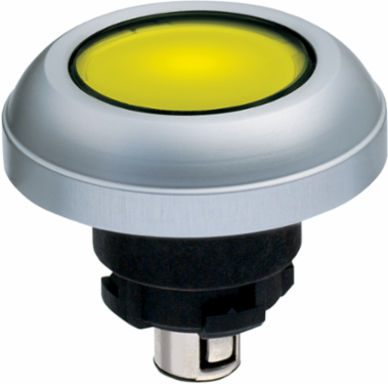

Illuminated Signal Light, 39.5 mm Diameter, IP65, Integrated Multi-LED

Features

flat dome
integrated multi-LED, extra bright in device head

Documentation & Downloads

Specifications

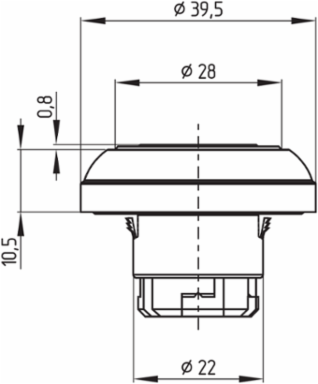

Mechanical data - Dimensions

Diameter total	39.5 mm
Diameter of the dome	25 mm
Mounting diameter	22.3 mm
Thickness of the front panel, maximum	6 mm

Height of the dome	0.5 mm
Diameter of the front ring	39.5 mm
Thickness, of the front panel, minimum	1 mm
Spacing	40 x 50 mm

General data - Features

Illuminable	Yes
Fully insulated	Yes

Mounting flange	Yes
Integral system diagnostics, general	Yes

General data

Standards	EN IEC 60947-5-1 \| EN IEC 60947-1
Design	Round \| Flat dome
Sealing type	Membrane \| Lip gaskets \| Form seals
Material of the front ring	Aluminium
Colour of the front ring	Silver
