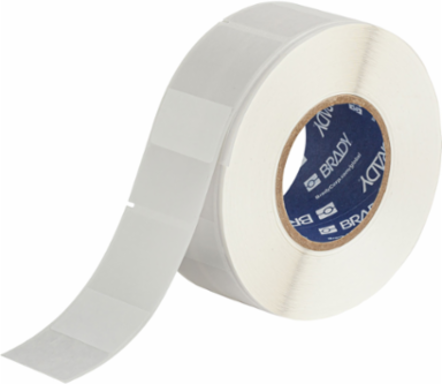

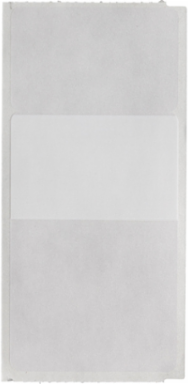

Brady THTRO-299-427 Rotating Vinyl Wire Labels 3.125 in H x 2 in W Vinyl White/Translucent 700 /RL
- MPN: THTRO-299-427
- UPC: 754473632625
- PPN: BRD-THTRO-299-427
- UNSPSC: 55121612
CAD
$922.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

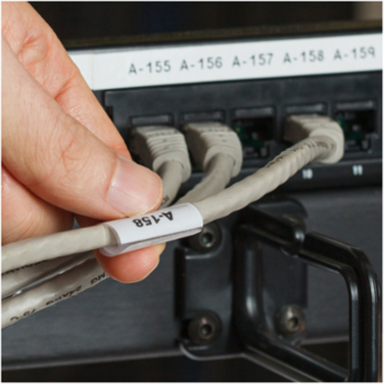

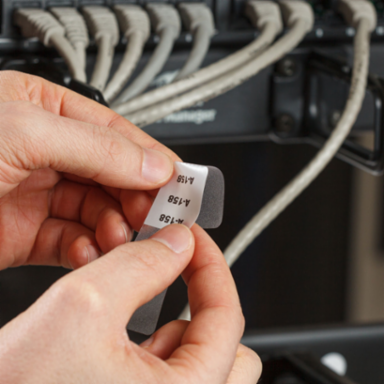

Identify your wires from any angle with B-427 Rotating Vinyl Wire Labels. Simply print your labels and then peel, fold and wrap – they’ll rotate freely for easy ID on even closed network connections.
Features
- Rotates so you can identify your labels from any angle
- Simply wrap and apply ? there’s no adhesive residue or label parts to cling to your wires
- Spins freely without anchors so these labels won’t damage your Cat 5 / 6 and fiber optic cables
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- White/Translucent
- Diagram
- Icon 73 (RO-circle)
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 700
- Recommended Ribbon
- IP-R4302; R4302
- Shape
- Rectangle
- Total Qty per Pack
- 700 Label(s) / Roll
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material Properties
- Flame-retardant; Self-laminating
- SAP B-Number
- B-427
- Dimensions
- 3.125 in H x 2 in W
- Dimensions 2
- 3.125 in H x 2 in W
- Height (mm/cm/m)
- 79.38 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.398 in
- Minimum Service Temperature °C
- -70 °C
- Minimum Wire Gauge
- 8 AWG
- Printable Area Dimensions (Metric)
- 31.75 mm H x 50.80 mm W
- Printable Area Height (mm/cm/m)
- 31.75 mm
- Printable Area Width (mm/cm/m)
- 50.80 mm
- Size - Width (mm)
- 50.80 mm
- Thickness (mm/cm/m)
- 0.102 mm
- Vertical Repeat (mm)
- 115.90 mm
- Width (in/ft/yd)
- 2 in
- Wire Gauge Range
- 8 AWG to 4 AWG
Brand NameBrady®
Compatible Surface TypesGeneral
Enables Industry ComplianceASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
For Use with PrinterBradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row1
Ribbon SeriesR4300
Suggested Ribbon SeriesR4300
Total Quantity700
Brady Material NumberB-427
MaterialSelf-laminating Vinyl
Overlaminate IncludedOverlaminate Included
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)50.80 mm W x 79.38 mm H
Height (in/ft/yd)3.125 in
Label/Tape Size (in/ft/yd)3.125 in H x 2 in W
Maximum Service Temperature °F158 °F
Maximum Wire Gauge4 AWG
Minimum Service Temperature °F-94 °F
Printable Area Dimensions1.25 in H x 2 in W
Printable Area Height (in/ft/yd)1.25 in
Printable Area Width (in/ft/yd)2 in
Sign Size-General3.125 in x 2 in
Thickness (in/ft/yd)0.004 in
Vertical Repeat4.563 in
Web Width (mm/cm/m)55.88 mm
Width (mm/cm/m)50.8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
