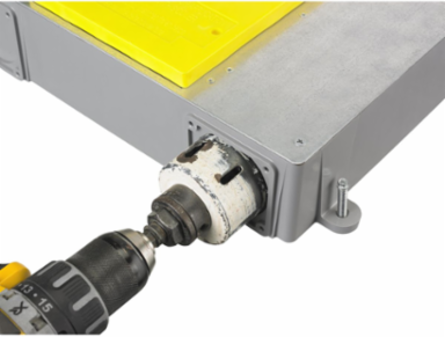

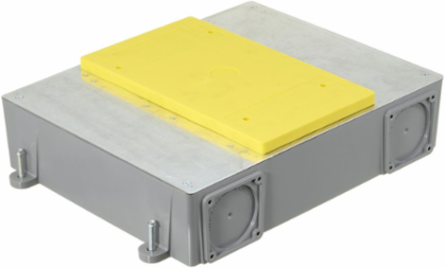

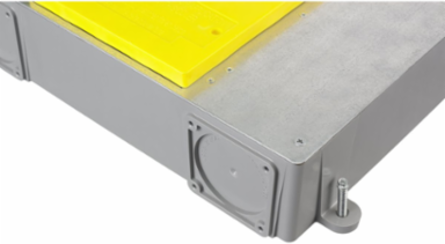

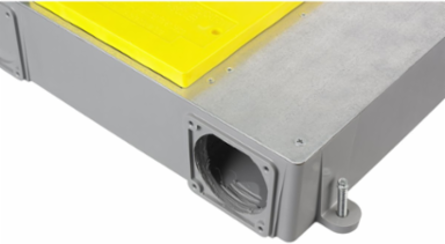

Hubbell Premise Wiring CFB4G30PFBE 4-Gang PVC Floor Box, 15.70" x 11.20" x 3.17", Corrosion Resistant
- MPN: CFB4G30PFBE
- UPC: 783585695433
- PPN: HBL-CFB4G30PFBE
- UNSPSC: 39121307
CAD
$428.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, PVC Base Box, Recessed, 4-Gang CFB E-Series Box for Rectangular Covers, 3.17" Minimum Depth of Pour, Corrosion Resistant
Features
- Corrosion-Resistant Recessed 4-Gang Rectangular Cover PVC Base Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 3.17" Minimum Depth of Pour
- Box Includes Installation Cover & 1/2" Prepour Cap
- Each Gang Includes Grounding Terminals
- Corrosion Resistant PVC Base Box with Pregalvanzied Top; Molded in Drill Points;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Dimensions
- 15.70 in x 11.20 in x 3.17 in
- Mounting Method
- Screw Mount Device Mounting Plates
- Color
- Gray/Metallic
- Size
- 15.70 in x 11.20 in x 3.17 in
- Number of Gang(s)
- 4-Gang
- Application
- For Use in Concrete Floors
- Box Finish
- Gray
- Top Mounting Plates Material
- 16 gauge galvanized steel
- Prepour Cover Material
- Yellow Plastic
- Wiring Chamber Volume
- 4 x 51.0 in3 (835 cm3)
- Compliance
- cULus Listed, UL 514A Listed
Mounting TypeField Installed
MaterialCorrosion Resistant PVC Base Box with Pregalvanized Top
TypeRecessed
Style4-Gang
Cable EntryThrough Cover
Box MaterialPVC
Cover TypeRectangular Recessed 4-Gang
Flush Prepour Cover Material16 gauge galvanized steel
Device Chamber GroundingGreen #10-32 Screw
PVC Conduit EntryEnds, 11 4 in max, requiring drilling
