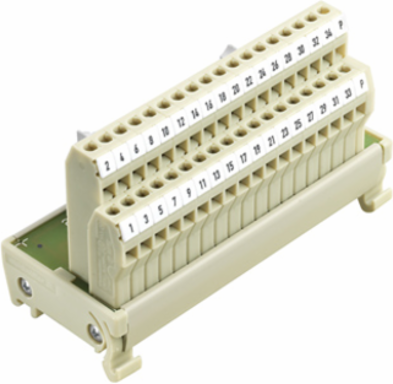

Weidmuller 8258980000 RS F14 LPK 2H/16
- MPN: 8258980000
- PPN: WDM-8258980000
CAD
$32.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

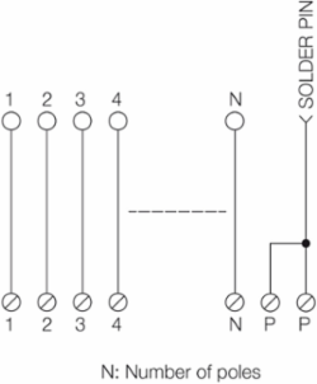

Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 14-pole, Screw connection
Specifications
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 56 mm |
|---|---|
| Width | 45 mm |
| Height | 65.5 mm |
| Net weight | 91 g |
| Length (inches) | 2.205 inch |
|---|---|
| Width (inches) | 1.772 inch |
| Height (inches) | 2.579 inch |
Insulation Coordination (En50178)
| According to | DIN EN 50178 |
|---|---|
| Surge voltage category | II |
| Pulse voltage test (1,2/50μs) | 0.8 kV |
| Rated insulation voltage | 100 V |
|---|---|
| Pollution severity level | 2 |
Connection Data
| Connection on control side | Plug-in connector in acc. with IEC60603-13 / DIN41651 |
|---|---|
| Connection (field side) | LPK 2H 5.08mm |
| Protective earth connection | Flat-blade contact |
| Number of poles (control side) | 14-pole |
|---|---|
| Earthing | Yes |
Connection Field
| Type of connection | Screw connection |
|---|---|
| Clamping range, max. | 1.5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible with sleeve, min. | 0.5 mm² |
| Min. wire cross-section, AWG | AWG 26 |
| Tightening torque, min. | 0.5 Nm |
| Stripping length | 6 mm |
| Clamping range, min. | 0.15 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.5 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| Flexible with sleeve, max. | 2.5 mm² |
| Sleeve with plastic collar, max. | 2.5 mm² |
| Max. wire cross-section, AWG | AWG 12 |
| Tightening torque, max. | 0.6 Nm |
Classifications
| ETIM 6.0 | EC002780 |
|---|---|
| eClass 9.0 | 27-14-11-52 |
| eClass 10.0 | 27-14-11-52 |
| ETIM 7.0 | EC002780 |
|---|---|
| eClass 9.1 | 27-14-11-52 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | 0...55 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40...70 °C |
Rating Data
| Rated voltage | 60 V AC / 75 V DC |
|---|
| Rated current per connection | 1 A |
|---|
