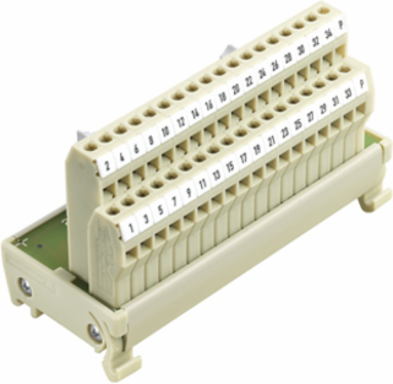

Weidmuller 8213470000 RS F26 LPK 2H/28
- MPN: 8213470000
- PPN: WDM-8213470000
CAD
$139.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 26-pole, Screw connection
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Length
- 86 mm
- Width
- 45 mm
- Height
- 65.5 mm
- Net weight
- 128 g
Length (inches)3.386 inch
Width (inches)1.772 inch
Height (inches)2.579 inch
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- II
- Pulse voltage test (1,2/50μs)
- 0.8 kV
Rated insulation voltage100 V
Pollution severity level2
Connection Data
- Connection on control side
- Plug-in connector in acc. with IEC60603-13 / DIN41651
- Connection (field side)
- LPK 2H 5.08mm
- Protective earth connection
- Flat-blade contact
Number of poles (control side)26-pole
EarthingYes
Connection Field
- Type of connection
- Screw connection
- Clamping range, max.
- 1.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Min. wire cross-section, AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.15 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 55 °C
- Storage temperature, max.
- 70 °C
- Operating temperature
- 0...55 °C
Operating temperature, min.0 °C
Storage temperature, min.-40 °C
Storage temperature-40...70 °C
Rating Data
- Rated voltage
- 60 V AC / 75 V DC
Rated current per connection1 A
